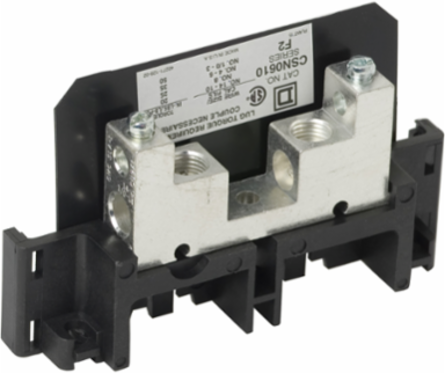

Square D CSN0610 Heavy Duty Safety Switch Solid Neutral Assembly, Copper/Aluminum, Max 100A
- MPN: CSN0610
- UPC: 785901723134
- PPN: SCH-CSN0610
CAD
$50.52
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric Heavy Duty Safety Switch features a solid neutral assembly designed to handle both copper and aluminum connections, making it a versatile choice for various electrical needs. Capable of supporting a maximum of 100 amps, this robust switch ensures safe disconnecting and protection within power distribution systems. Its dependable construction and functionality are ideal for industrial applications where safety and efficiency are paramount.
Features
- Engineered specifically as a field-installable solid neutral assembly for Square D 60A and 100A Heavy Duty Safety Switches, this kit guarantees a secure, OEM-approved internal fit. By using a factory-matched component rather than attempting custom modifications, electricians can quickly complete commercial panel retrofits while maintaining the absolute integrity of the power distribution system.
- Featuring robust, dual-rated mechanical lugs, this neutral block easily accepts (2) 1/0 AWG or (2) #6 AWG aluminum or copper wiring configurations. This versatile lug design eliminates the frustrating need for external splicing or specialized adapters on the job site, saving valuable time during industrial motor feed installations and ensuring a secure, low-resistance termination.
- Designed to support the most demanding electrical applications, this rugged solid neutral assembly safely manages distribution systems rated up to 600V AC. Its durable construction effectively withstands high-torque tightening and mitigates thermal expansion, preventing the loose connections that lead to dangerous arcing or costly operational downtime in manufacturing facilities.
- Fully tested to rigorous UL 98 and NEMA KS1 standards, integrating this factory-certified accessory ensures your heavy-duty safety switch strictly maintains its required North American safety ratings. Trusting CSA and UL-listed components guarantees a smooth pass during local electrical code inspections and ensures your facility's operational liability insurance remains fully valid.
Documentation & Downloads
Specifications
Additional
- Line Rated Current
- 60 A F5, 60 A F6, 100 A F2, 100 A F6
- Tightening Torque
- 50 lb.in (AWG 3 to AWG 1/0), 35 lb.in (AWG 6 to AWG 4), 25 lb.in (AWG 8), 20 lb.in (AWG 14 to AWG 10)
- Series
- Heavy duty
- Environmental Disclosure
- ENVPEP1304031
- Mercury Free
- Yes
- China RoHS Regulation
- Out of China RoHS scope
Awg GaugeAWG 1/0 copper or aluminum, AWG 6 copper or aluminum
Product TypeSafety switch solid neutral assembly
Material CompatibilityCopper, Aluminum
Reach RegulationContains Substances of Very High Concern
RoHS ComplianceEU RoHS Directive Compliant with Exemptions
