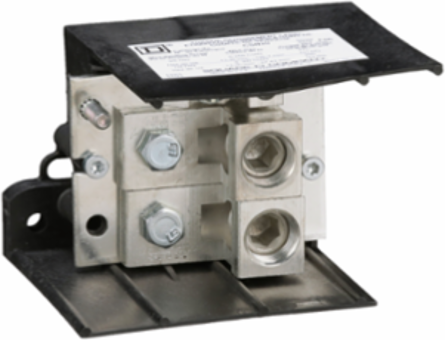

Square D CSN20 Heavy Duty Safety Switch Solid Neutral Assembly 200A AWG 1/0 Copper or Aluminum
- MPN: CSN20
- PPN: SCH-CSN20
CAD
$98.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robust power management, the Schneider Electric CSN20 Heavy Duty Safety Switch features a solid neutral assembly, designed to handle up to 200A of current. This switch is compatible with both AWG 1/0 copper and aluminum conductors, ensuring versatility for a range of installation environments. As part of the Power Distribution category, this heavy duty switch exemplifies reliability and safety, making it a crucial component in electrical disconnect applications. With its high-quality construction, this safety switch is well-suited for demanding industrial settings where performance and durability are paramount.
Features
- Boasting a robust 200-amp maximum rating, this solid neutral assembly is engineered to handle substantial, continuous electrical loads without overheating. It provides commercial electricians and facility operators with a dependable return path for alternating current, making it ideal for standard commercial buildings, medium industrial machinery installations, and storefront service upgrades.
- Designed as a dedicated factory accessory, this kit fits seamlessly into Square DTM and Schneider ElectricTM 200A Series F5 to F6 heavy-duty safety switches. This precise mechanical design ensures a drop-in installation with perfectly pre-aligned mounting holes, completely eliminating the need for field modifications, dangerous makeshift brackets, or drilling inside the enclosure.
- Outfitted with high-capacity terminal lugs, this assembly cleanly accepts up to two 250 kcmil aluminum/copper conductors or one #1/0 kcmil aluminum/copper conductor. The dual-lug architecture provides maximum wiring flexibility for incoming and outgoing lines, ensuring low-resistance electrical connections that meet rigid NEC and CEC guidelines for high-amp feeder runs.
- Engineered to withstand high tightening torques up to 275 lb-in for large 250 kcmil cables this rugged grounding and neutral block maintains tight physical pressure on the conductor. This mechanical integrity prevents terminal relaxation caused by natural temperature cycling and vibration, eliminating hot spots, arcing, and intermittent phase-to-neutral power interruptions.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Product Or Component Type
- safety switch solid neutral assembly
Range Of ProductSquare D
Complementary
- Tightening Torque
- 275 lb.in, AWG 6...250 kcmil, copper or aluminum || 200 lb.in, AWG 6...AWG 2/0, copper or aluminum
- Awg Gauge
- AWG 1/0 copper or aluminum || 250 kcmil copper or aluminum
[In] Rated Current200 A F5 || 200 A F6
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1304031
- Eu Rohs Directive
- Compliant with Exemptions
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
