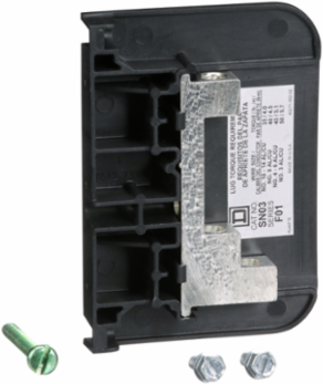

Square D CSN03 Heavy Duty Safety Switch 60A Copper/Aluminum Solid Neutral Assembly
- MPN: CSN03
- UPC: 785901421900
- PPN: SCH-CSN03
CAD
$50.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for robust performance in power distribution applications, this safety switch stands out with its heavy-duty construction designed to facilitate reliable electrical disconnection. It accommodates both copper and aluminum wiring, ensuring versatility in various installation scenarios, making it suitable for diverse heavy-duty requirements. With a solid neutral assembly, the switch delivers enhanced safety and operational efficiency, positioning it as an essential component for industrial environments where secure and dependable power management is paramount.
Features
- Engineered to scale flexibly with your distribution needs, this kit drops directly into both 30-amp and 60-amp Square D™ Heavy Duty Safety Switches (Series F). This cross-frame versatility simplifies on-site procurement and inventory tracking, ensuring facility teams always have the right component for different localized equipment layouts.
- Equipped with versatile, factory-installed dual-rated mechanical lugs, the assembly accepts up to 2 AWG copper or aluminum wiring. This material flexibility removes matching limitations in the field, allowing commercial electricians to save on material costs by landing existing feeder cables directly into the switch without requiring extra transition blocks.
- Designed with heavy-duty mechanical connection points, the assembly maintains a solid structural seat when torqued down from 35 to 50 lb-in depending on wire gauge. This rigorous mechanical security prevents wire loosening under constant machine vibrations, significantly lowering the risk of thermal runaway, localized tracking fires, and contact degradation.
- nstalling this solid neutral block upgrades your standard disconnect switch into an NEC-compliant service entrance device. It provides a dedicated, uninterrupted path for neutral current back to the main utility source, preventing dangerous floating neutral faults and safeguarding both upstream infrastructure and maintenance crews.
Documentation & Downloads
Specifications
Additional
- Amperage
- 60 A
- AWG Gauge
- AWG 2 copper or aluminum
- Assembly Type
- Solid Neutral
- Series Name
- Heavy Duty
- RoHS Compliant
- Compliant with Exemptions
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- China RoHS Regulation
- Out of China RoHS scope
- Circularity Profile
- N/A
- Range Of Product
- Square D
Rated Current30 A F1, 30 A F5, 30 A F6, 60 A F4, 60 A F5, 60 A F6
Tightening Torque50 lb.in AWG 3, 45 lb.in AWG 6 to AWG 4, 40 lb.in AWG 8, 35 lb.in AWG 14 to AWG 10
MaterialCopper, Aluminum
RoHS ExemptionYes
Mercury FreeYes
Environmental DisclosureENVPEP1304031
Sustainable Offer StatusGreen Premium product
Country of OriginUS
