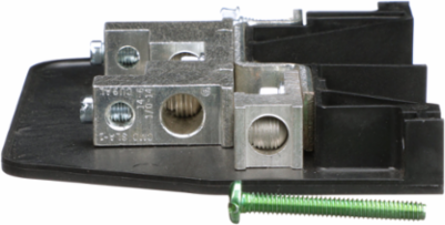

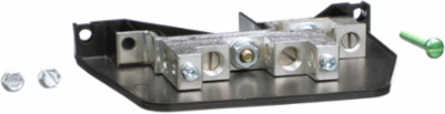

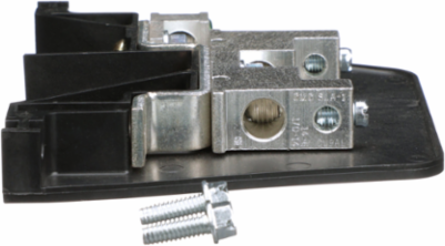

Square D SN0310 Heavy Duty Safety Switch 30A-100A Copper/Aluminum Solid Neutral Assembly
- MPN: SN0310
- UPC: 785901393443
- PPN: SCH-SN0310
CAD
$92.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. The "F" series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Heavy Duty Safety Switch Insulated Groundable Neutral Assembly has a rated current of 30A to 100A. This switch can accept a AWG wire gauge of AWG 14/AWG 1/0 for copper or aluminium. locking H- and J-frame circuit This heavy duty safety switch, solid neutral assembly, has a rated current of 30A-100A, and will accept a AWG gauge of AWG 14/AWG 1 x 0 for copper or aluminium.
Features
- Engineered specifically for seamless integration, this field-installable solid neutral kit is perfectly compatible with Square D by Schneider Electric Series F Heavy Duty Safety Switches. It mounts cleanly into both Double Throw (DT) and Non-Fusible Double Throw (DTU) 2-pole and 3-pole disconnects, eliminating configuration guesswork and preventing costly project delays during fast-paced commercial switch installations.
- It bridges the gap between varying system requirements by supporting a wide operational range from 30 Amp up to a 100 Amp maximum load capacity, giving electrical contractors a single, versatile SKU that minimizes truck-stock inventory.
- Equipped with versatile mechanical lugs, each terminal accepts a wide variety of wire sizes, accommodating 14 AWG to 1/0 AWG for copper conductors and 12 AWG to 10 AWG for aluminum conductors. This broad wire-gauge range simplifies field wiring, provides secure, low-resistance connections, and accommodates standard structural feeder sizes without the hassle of stepping down the conductor.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 30 A to 100 A
- Tightening Torque
- 50 lb.in (AWG 3 to AWG 1/0), 45 lb.in (AWG 6 to AWG 4), 40 lb.in (AWG 8), 35 lb.in (AWG 12 to AWG 10 and AWG 14), copper or aluminum
- Product Type
- Safety switch solid neutral assembly
- PVC Free
- Yes
- Compliance
- NEMA KS-1, UL 98, EU RoHS Compliant with Exemptions
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- Country of Origin
- United States
Wire Gauge CompatibilityAWG 14 to AWG 1/0 copper, AWG 12 to AWG 10 aluminum
MaterialCopper, Aluminum
Series NameHeavy Duty
Mercury FreeYes
RoHS ExemptionYes
Environmental DisclosureENVPEP1304031
