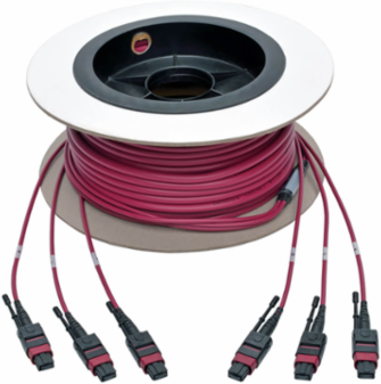

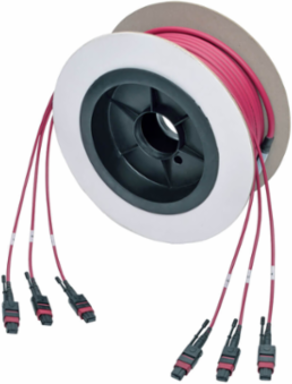

Tripp Lite N858-15M-3X8-MG 15 Meter Multimode Base-8 Trunk Cable, 40/100G OM4, Magenta, 8 Fibers
- MPN: N858-15M-3X8-MG
- UPC: 037332200181
- PPN: TRP-N858-15M-3X8-MG
CAD
$1526.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

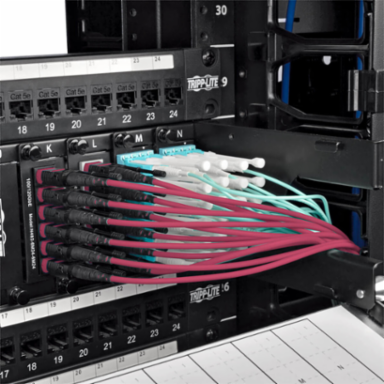

Premium multimode fiber optic cabling for transmitting 40/100 Gb data and voice signals. Designed for high-density connections between network equipment in telecom rooms and data centers.
Features
- Push/pull tab connectors install/remove with one hand

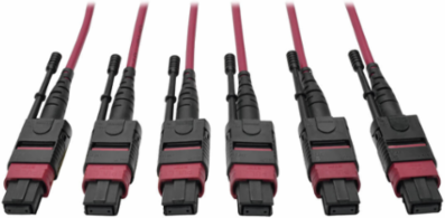

- 8-fiber MTP/MPO connectors with 12x density of SC connectors
- 100% tested for low insertion loss and back reflection
- 50/125 OM4-rated multimode fiber
- Magenta color for easy OM4 identification
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Additional
| Network Speed | 10 Gbps / 40 Gbps / 100 Gbps |
|---|---|
| Fiber Type | Multimode OM4 |
| Clad Diameter | 125 micron |
| Attenuation @ 1300 nm | 1.0 dB/km |
| Storage Temperature Range | -20 to 60 C (-4 to 140 F) |
| Connector Type | MTP/MPO, Female, 8-strand (3 per end) |
| Cable Jacket | Plenum Rated, 5.6 mm ruggedized |
| Warranty | Lifetime limited warranty |
| Number of Fibers | 8 |
|---|---|
| Core Diameter | 50 micron |
| Attenuation @ 850 nm | 3.0 dB/km |
| Operating Temperature Range | -20 to 60 C (-4 to 140 F) |
| Cable Length | 15 m (49.2 ft) |
| Connector Features | Push/pull tab |
| Color | Magenta |
