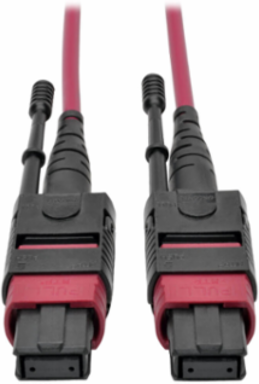

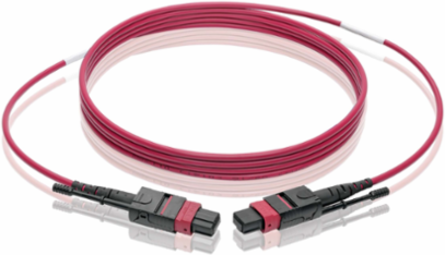

Tripp Lite N845-05M-12-MG 5M OM4 Multimode Patch Cable, 12 Fibers, Magenta, Push/Pull Tabs
- MPN: N845-05M-12-MG
- UPC: 037332200297
- PPN: TRP-N845-05M-12-MG
CAD
$418.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

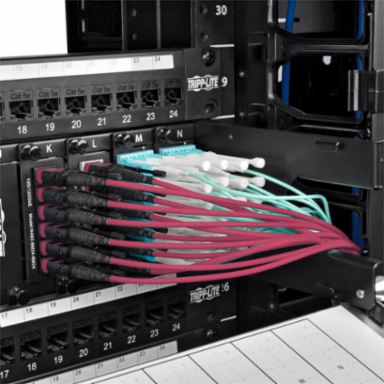

Premium multimode fiber optic cabling for transmitting 40/100 Gb data and voice signals over short distances. Designed for high-density connections between network equipment in telecom rooms and data centers.
Features
- Push/pull tab connectors install/remove with one hand

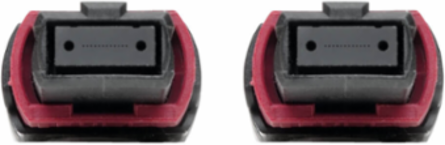

- 12-fiber MTP/MPO connectors with 12x density of SC connectors
- 100% tested for low insertion loss and back reflection
- Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
- 50/125 OM4-rated multimode fiber
- Magenta color for easy OM4 identification
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Additional
| Attenuation @ 1300NM | 1.0 dB/km |
|---|---|
| Operating Temperature Range | -4 to 140 F (-20 to 60 C) |
| Cable Length | 5 m (16.4 ft) |
| Core Diameter | 50 micron |
| Fiber Type | 50/125 OM4 multimode |
| Connector Features | Push/pull tabs |
| Color | Magenta |
| Network Speed | 10 Gbps, 40 Gbps, 100 Gbps |
|---|---|
| Attenuation @ 850NM | 3.0 dB/km |
| Clad Diameter | 125 micron |
| Fiber Count | 12 fibers |
| Connector Type | 12-strand MTP/MPO female |
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
