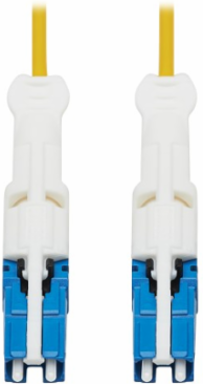

Tripp Lite N381C10M 400G Duplex Singlemode 9/125 OS2 Fiber Optic Cable, CS-UPC/CS-UPC, LSZH, Yellow, 10 m
- MPN: N381C10M
- UPC: 037332258014
- PPN: TRP-N381C-10M
CAD
$95.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

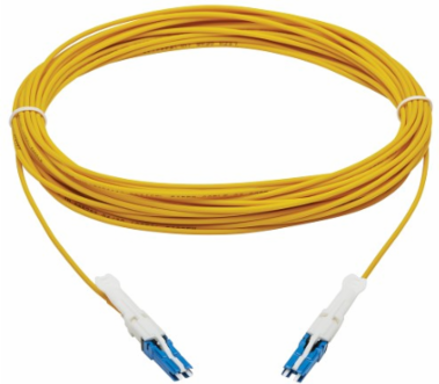

400G Duplex Singlemode 9/125 OS2 Fiber Optic Cable (CS-UPC/CS-UPC), Round LSZH Jacket, Yellow, 10 m
Documentation & Downloads
Specifications
Dimensions
| Cable Length | 10 m (32.8 ft) |
|---|---|
| Clad Diameter | 125 |
| Primary Coating Diameter | 600 |

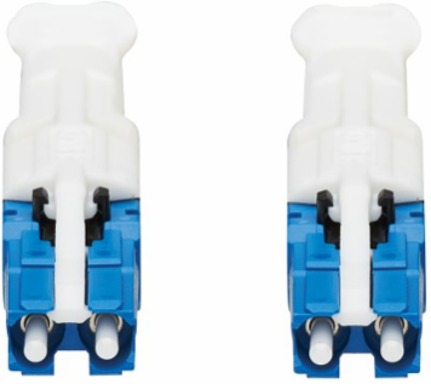

| Side A - Connector 1 | CS DUPLEX (MALE) |
| Push/Pull Tabs | Yes |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
|---|---|
| Core Diameter | 9 |
| Number of Fibers | 2 |
| Side B - Connector 1 | CS DUPLEX (MALE) |
Performance
| Network Compatibility | 400 Gbps |
|---|---|
| Attenuation @ 1310NM | 0.36 dB/km |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Transmission Distance | 2KM @ 1310NM Wavelength |
|---|---|
| Attenuation @ 1550NM | 0.22 dB/km |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
Material
| Technology | Singlemode |
|---|---|
| Cable Jacket Color | Yellow |
| Cable Jacket Material | LSZH |
| Endface Polish | UPC |
|---|---|
| Connector Color | Blue, White |
| Cable Jacket Rating | OFNR |
Reference
| Product Warranty Period | Lifetime limited warranty |
|---|
