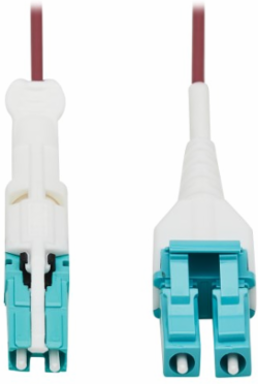

Tripp Lite N822L10MMG Fiber Optic Cable, Duplex Multimode 50/125 OM4, CS-PC/LC-PC, LSZH, Magenta, 10 m
- MPN: N822L10MMG
- UPC: 037332258106
- PPN: TRP-N822L-10M-MG
CAD
$81.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Duplex Multimode 50/125 OM4 Fiber Optic Cable (CS-PC/LC-PC), Round LSZH Jacket, Magenta, 10 m
Documentation & Downloads
Specifications
Dimensions
| Cable Length | 10 m (32.8 ft) |
|---|---|
| Clad Diameter | 125 |
| Primary Coating Diameter | 600 |
| Side A - Connector 1 | CS Duplex (Male) |
| Push/Pull Tabs | Yes |
| Number of Fibers | 2 |
|---|---|
| Core Diameter | 50 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Side B - Connector 1 | LC Duplex (Male) |
Performance
| Network Compatibility | 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps |
|---|---|
| Attenuation @ 850NM | 3.0 dB/km |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Transmission Distance | 100M @ 850NM Wavelength |
|---|---|
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
Material
| Technology | Multimode |
|---|---|
| Cable Jacket Color | Magenta |
| Cable Jacket Material | LSZH |
| Endface Polish | PC |
|---|---|
| Connector Color | White; Aqua |
| Cable Jacket Rating | OFNR |
Compliance
| Product Warranty Period | Lifetime limited warranty |
|---|
