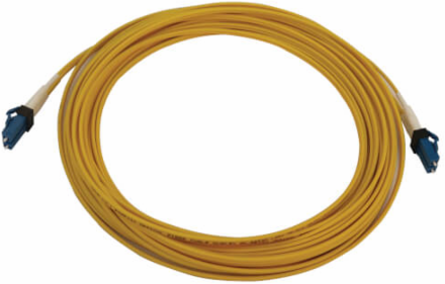

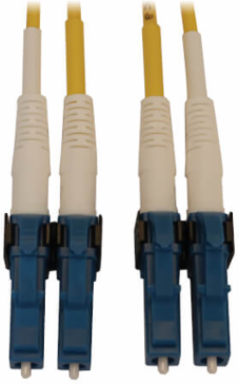

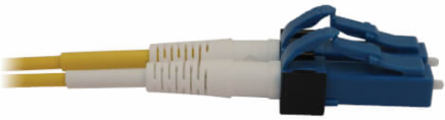

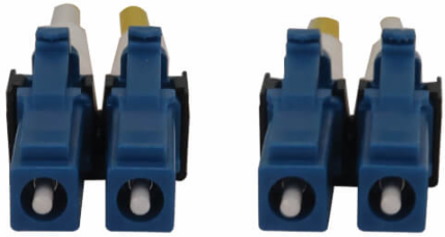

Tripp Lite N370X10M 400G Duplex Singlemode 9/125 OS2 Fiber Optic Cable, LC/UPC M/M, LSZH, Yellow, 10 m
- MPN: N370X10M
- UPC: 037332271853
- PPN: TRP-N370X-10M
CAD
$50.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Duplex Singlemode 9/125 OS2 Switchable Fiber Optic Cable (LC/UPC M/M), LSZH, Yellow, 10 m (32.8 ft.)
Documentation & Downloads
Specifications
Material
- Technology
- Singlemode
- Switchable Polarity
- Yes
- Connector Color
- Blue, White
- Cable Jacket Rating
- OFNR
Endface PolishUPC
Cable Jacket ColorYellow
Cable Jacket MaterialLSZH
Dimensions
- Cable Length
- 10 m (32.8 ft)
- Cable Outer Diameter
- 2.0 +/- 0.1 mm x 4.1 +/- 0.2 mm
- Core Diameter
- 9.0
- Number of Fibers
- 2
- Side B - Connector 1
- LC DUPLEX (MALE)
Minimum Bend Radius20 mm (Dynamic); 10 mm (Static)
Clad Diameter125.0
Primary Coating Diameter600.0
Side A - Connector 1LC DUPLEX (MALE)
Optical PortLC
Performance
- Network Compatibility
- 1 Gbps (Gigabit); 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
- Attenuation @ 1550NM
- 0.3 dB/km
- Storage Temperature Range
- -4° to 140°F (-20° to 60°C)
Attenuation @ 1310NM0.4 dB/km
Operating Temperature Range-4° to 140°F (-20° to 60°C)
Relative Humidity5% to 85% RH, Non-Condensing
Reference
- Product Warranty Period
- Lifetime limited warranty
