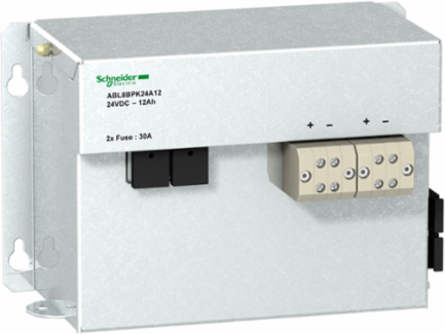

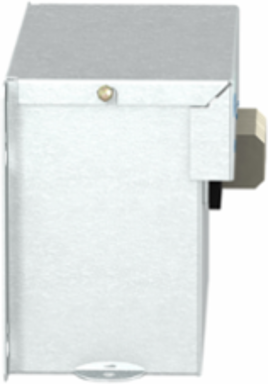

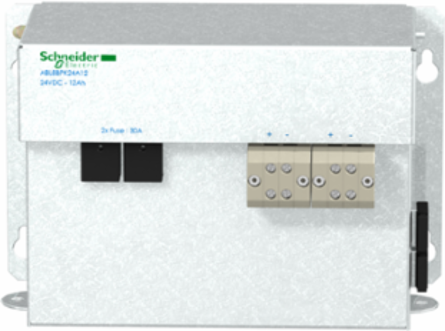

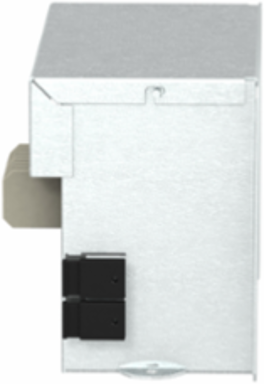

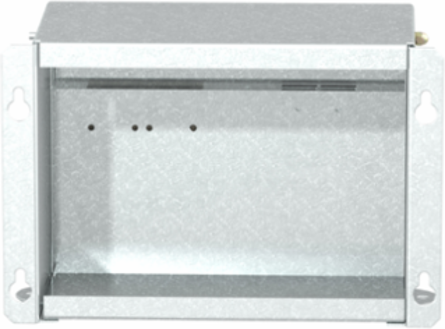

Telemecanique Sensors ABL8BPK24A12 Battery Control Module 24V DC, 75A, 12Ah, DIN Rail Mount
- MPN: ABL8BPK24A12
- PPN: SCH-ABL8BPK24A12
CAD
$433.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This ABL8 backup battery (storage capacity 7 ampere hour) supplies direct current voltage. It has a rated output current of 75A at 24V DC. This backup battery (storage capacity 7Ah) is designed to provide continuous auxiliary power during significant and long network power shortages. It provides long term backup power for power blackouts lasting more than a few seconds. It weighs 6,500kg. It is a functionnal module for power supply for industrial use, rail mounting. It is certified by GOST, UL. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Documentation & Downloads
Specifications
Key Specifications
- Output Voltage
- 24 V DC
- Holding Time
- < 20 h 0.6 A, 20 °C || > 5 min 31.3 A, 20 °C
- Input Voltage
- 24 V DC
- Battery Capacity
- 12 Ah
Range Of ProductPhaseo
Product Or Component Typebattery module
Maximum Output Current75 A
Complementary
- Output Coupling
- parallel
- Fixing Mode
- by 2 screws 5 mm horizontal panel horizontal || by 4 screws 5 mm vertical panel vertical
- Marking
- CE
- Net Weight
- 12 kg
- Connections - Terminals
- input connection screw type terminals 4 x 0.5...4 x 10 mm² AWG 20...AWG 8 || output connection screw type terminals 4 x 0.5...4 x 10 mm² AWG 20...AWG 8
- Service Life In Hours
- 11000 h 40-40 °C || 15000 h 35-35 °C || 22000 h 30-30 °C || 31000 h 25-25 °C || 44000 h 20-20 °C || 5000 h 50-50 °C || 7300 h 45-45 °C
Self-Discharge Rate15 %, 6 months || 9 %, 3 months || 3 %, 1 month
Load Current1.2 A
Input Voltage Limits21...29 V
Charging Time72 h
Output Protection Typeagainst overload and short-circuits 2 x 30 A automotive type fuses
Operating Altitude2000 m
Environment
- Product Certifications
- CTP || UL
- Vibration Resistance
- 2 gn 11.9-150 Hz)IEC 61131-2 || 3.5 mm 3-11.9 Hz)IEC 61131-2
- Ambient Air Temperature For Storage
- -20-50 °C
Ambient Air Temperature For Operation0-40 °C
Ip Degree Of ProtectionIP10 IEC 60529
Overvoltage Categoryclass 3 VDE 0106-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP1410021EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1410021EN
Pvc FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
