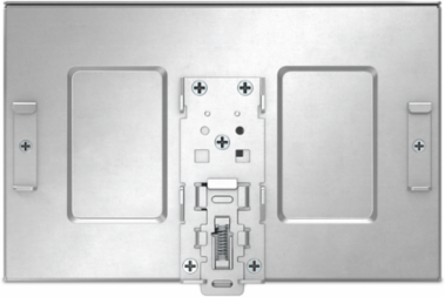

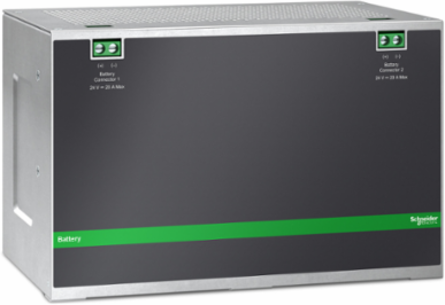

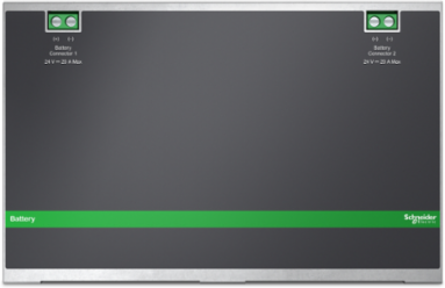

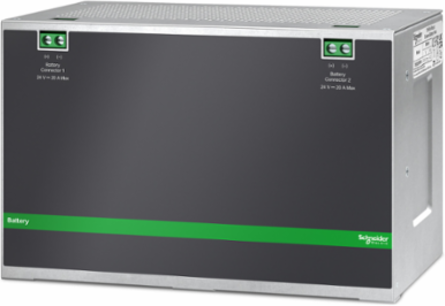

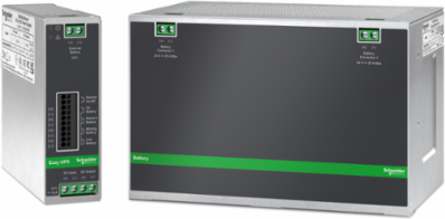

APC XB005XPDR Easy UPS Battery Module, 24V DC, DIN Rail, Industrial, 4.5Ah, 9.92 lb, VRLA
- MPN: XB005XPDR
- UPC: 731304451518
- PPN: APC-XB005XPDR
CAD
$231.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. The XB005XPDR is an external battery pack designed for the BVS240XDPDR and BVS480XDPDR Industrial UPS models. It allows for daisy chaining of up to a total of 4 battery packs. It offers 10 mins of runtime at 10A of load and 5 mins of runtime at 20A load. It comes with a 2-year standard warranty.
Features
- Connect up to 4 external battery packs
- Allows for additional runtime during extended power outages
- Compatible with Easy UPS BVS-PDR
- 2-year standard warrranty
Documentation & Downloads
Specifications
Additional
| Voltage | 24 V DC |
|---|---|
| Ambient Air Temperature for Operation | 5 to 122 F (-15 to 50 C) |
| Height | 5.08 in (129 mm) |
| Weight | 9.92 lb (4.5 kg) |
| RoHS | Compliant with Exemptions |
| Ambient Air Temperature for Storage | 5 to 158 F (-15 to 70 C) |
| Storage Altitude | 0 to 9842.5 ft (0 to 3000 m) |
| Storage Relative Humidity | 0 to 95% |
| Battery Type | VRLA |
|---|---|
| Width | 7.56 in (192 mm) |
| Depth | 4.69 in (119 mm) |
| Approvals | CE, T V |
| Standards | IEC 62368-1 |
| Operating Altitude | 0 to 9842.5 ft (0 to 3000 m) |
| Relative Humidity | 0 to 95% |
