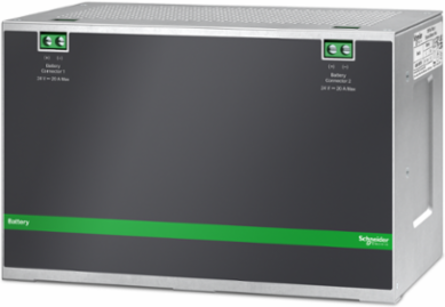

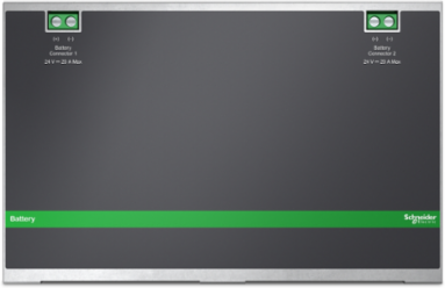

Schneider Electric XB005XPDR Easy UPS Battery Module 24V, 4.5Ah, DIN Rail, Industrial
- MPN: XB005XPDR
- UPC: 731304451518
- PPN: SCH-XB005XPDR
- UNSPSC: 26111701
CAD
$362.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

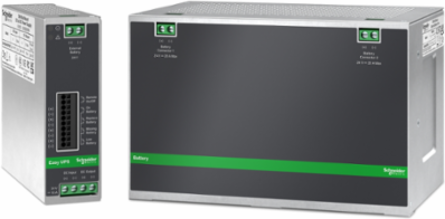

The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. The XB005XPDR is an external battery pack designed for the BVS240XDPDR and BVS480XDPDR Industrial UPS models. It allows for daisy chaining of up to a total of 4 battery packs. It offers 10 mins of runtime at 10A of load and 5 mins of runtime at 20A load. It comes with a 2-year standard warranty.
Features
- Engineered for seamless expansion, the XB005XPDR allows technicians to daisy-chain up to four external battery packs together to a single industrial UPS. This modular setup lets you easily scale your backup capacity over time, ensuring sensitive PLCs, HMIs, and edge controllers get the extended runtime required during prolonged blackouts without overhauling your core power infrastructure.
- This external 24V DC battery pack is purpose-built to integrate directly with Schneider Electric's Easy UPS BVS240XDPDR and BVS480XDPDR DIN rail modules. This tight ecosystem matching ensures plug-and-play synchronization, optimal charging profiles, and flawless DC-to-DC voltage delivery, eliminating configuration errors and communication gaps on the factory floor.
- Packing a high-density 4.5Ah capacity, this module delivers up to 10 minutes of critical backup power at a 10A load, and 5 minutes at a full 20A load. This high-rate discharge window gives facility automation networks ample time to complete controlled machine shutdowns, save vital production data, or gracefully bridge the gap until secondary backup generators kick online.

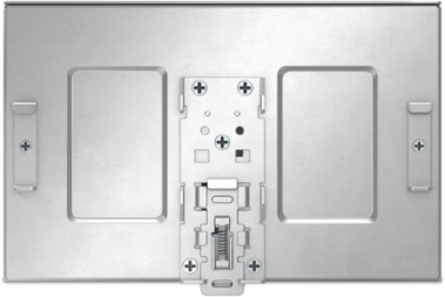

- esigned with an integrated heavy-duty DIN rail mount, this compact, metal-grey module snaps tightly onto standard 35mm rails without requiring specialized mounting brackets or loose hardware. Measuring just 5.08 inches high by 7.6 inches wide, its compact layout cleanly arranges your DC backup system vertically, saving high-value rail space for essential motor starters, relays, and power supplies.
Documentation & Downloads
Specifications
Key Specifications
| Weight | 4800 g |
|---|
| Depth | 119 mm |
|---|
Physical Attributes
| Color | metal grey |
|---|
Important Information Attributes
| Persona Type Ids | EUA, VR |
|---|---|
| Certificate Agency | CE, TÜV |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 2 kg CO2 eq., 1.6807566502 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 18 kg CO2 eq., 17.7581083744 |
| Local Data Status | Publishable |
| Pre Comm Date | 2022-01-25 |
| Device Type | DC Systems - DC Battery Systems |
| Traceability | No |
| Cr Shelf Life | 12 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1612036_EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2405 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Dangerous Goods Code | BATTERIES WET NON SPILLABLE (ELECTRIC STORAGE or LEAD ACID) |
| Tier | 3 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Provided Equipment | User Manual |
| Returnability | Yes |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 22 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 192 mm |
| Customs Code | 8507208041 |
| Functional Unit Description | The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 48 |
| Persona Type Names | Consumer, IT Channel Partner |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 1.1899743842, 1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 1.3501477833, 1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 17 kg CO2 eq., 16.750741766999337 |
| Local Publishable Date | 2026-03-26 |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | SPIBS |
| Service Catalog Item | Finished good |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Mounting Preference | no preference |
| Product Or Component Type | battery accessory |
| Redundant | No |
| Show Note Op Temperature | No |
| Sustainable Packaging | No |
| Usb Compatible | No |
| Database Version | 2025-30 |
| Height Nominal | 129 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 12 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -15-70 °C, -15-70 °C |
| Recycled Metal Content At Cr Level | 0 % |
| Circularity Profile | ENVEOLI1612036_EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Storage Altitude | 0-3000 m |
| Pep Code | ENVPEP1612036_EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Operation | -15-50 °C, -15-50 °C |
|---|---|
| Take Back | Yes |
| Carbon Footprint | 21.9789871921 |
| Environmental Disclosure | ENVPEP1612036_EN |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 0-95 % |
| Storage Relative Humidity | 0-95 % |
| Pep Verification Date | 2025-10-25 |
| Psr Version | PSR-0010-ed1.1-EN-2015 10 16 |
General Attributes
| Product Or Component Type | battery accessory |
|---|
| Provided Equipment | User Manual |
|---|
ETIM
| ETIM 8 | EC000357 |
|---|---|
| ETIM 10 | EC000357 |
| ETIM 9 | EC000357 |
|---|
Output Attributes
| Output Voltage | 24 V DC |
|---|
Contractual Warranty Attributes
| Warranty Period | 1 Year |
|---|
| Warranty | 1 Year |
|---|
Input Attributes
| Main Input Voltage | 24 V DC |
|---|
Batteries & Runtime Attributes
| Removable Battery | USER_REPLACEABLEUser replaceable |
|---|---|
| Battery Placement | Battery Cabinet |
| Battery Voltage | 24 V |
| Battery Capacity | 4.5 Ah |
|---|---|
| Battery Type | VRLA |
