Thomas & Betts K655SR-K0330-SG3 Deadbreak Straight Receptacle
- MPN: K655SR-K0330-SG3
- UPC: 075114319065
- PPN: T-B-K655SR-K0330-SG3
CAD
$1493.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25KV Straight Receptacle 600 Amps with Cable Adapter, Lug Retainer Ring and Sealing Kit. Cable Insulation Diameter 1.090-1.310 inches, Aluminum Lug, Conductor Size 500-600 kcmil. SG3 - Cold Shrinkable Seal with Copper Braid and Constant Force Spring.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps.
- Standard
- ANSI/IEEE Standard 386
- Connection
- Compression - Crimp
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15/25kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- All Weather Conditions, Fully Submersible
IGCC4586 Electrical connector assembly
TypeDeadbreak Straight Receptacle
Application15/25kV, 600 Amps
SizeDiameter 4.19 inch x Length 16.98 inch
Conductor RangeConductor Size 500 Stranded Compressed or 600 Solid-Compact kcmil
ColorBlack
Amperage Rating600 Amps
Temperature Rating-40 degrees to +65 degrees Celsius

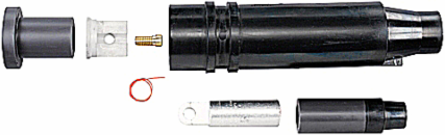

Consist Of1 Straight Receptacle Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 3 Tubes Lubricant, 1 Straight Receptacle adapter, 1 Cable adapter, 1 Adapter Retaining Ring, 1 Hardware Prepack, Crimp Chart, Installation Instruction Sheets
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
