Thomas & Betts K655L2-L0330-0MA Deadbreak 2-Way L Kit
- MPN: K655L2-L0330-0MA
- UPC: 078378695784
- PPN: T-B-K655L2-L0330-0MA
CAD
$2332.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV 600 Series Deadbreak 2-Way L-Kit, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. 0MA.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- No Seal. Metallic Tape Shield Adapter
- Standard
- ANSI/IEEE Standard 386
- Connection
- Compression - Crimp
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15/25kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- Fully Submersible
IGCC4586 Electrical connector assembly
TypeDeadbreak 2-Way L Kit
ApplicationUsed to connect two cable ends and using the two insulating plugs as test points allows for capacitive voltage testing.
Size3.38 inch (85.7 mm) Diameter. 10.87 inch (276.20 mm) Length Centerline to Edge.
Conductor Range550 kcmil Stranded/Compressed or 600 kcmil Solid/Compact
ColorBlack
Amperage Rating600 Amps
Temperature Rating-40 degrees to +65 degrees Celsius

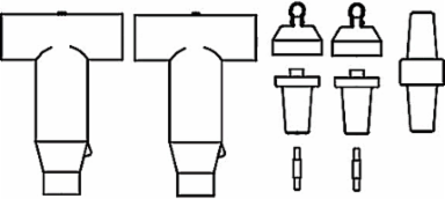

Consist Of(2) Elbows, (2) Cable Size Adapters, (2) Compression Lugs, (6) Tubes of Lubricant, (2) Basic Insulating Plugs with Caps, (2) Studs, (1) Connecting Plug, Installation Instructions, Crimp Chart.
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
