Thomas & Betts K655L3-2M0400-K0310 Deadbreak 3-Way L Kit
- MPN: K655L3-2M0400-K0310
- UPC: 783786024193
- PPN: T-B-K655L3-2M0400-K0310
CAD
$3051.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15/25kV 600 Series Deadbreak 3-Way L-Kit, 2 X ( Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 900 /Compacted Solid 1000 /mmSquared Compact 500. ) 1 X ( Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 400 /Compacted Solid 450 /mmSquared Compact 240. )
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- No Seal
- Standard
- ANSI/IEEE Standard 386
- Connection
- Compression - Crimp
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15/25kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- Fully Submersible
IGCC4586 Electrical connector assembly
TypeDeadbreak 3-Way L Kit
ApplicationUsed to split one line into two on in, out, tap and using the two insulating plugs as test points allows for capacitive voltage testing.
Size3.38 inch (85.7 mm) Diameter. 10.87 inch (276.20 mm) Length Centerline to Edge.
Conductor Range(2) 900 kcmil Stranded Compressed or 1000 kcmil Solid Compact to (1) 400 kcmil Stranded Compressed or 450 kcmil Solid Compact
ColorBlack
Amperage Rating600 Amps
Temperature Rating-40 degrees to +65 degrees Celsius

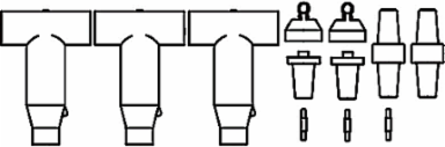

Consist Of(3) Elbows, (3) Cable Size Adapters, (3) Compression Lugs, (11) Tubes of Lubricant, (2) Basic Insulating Plugs with Caps, (3) Studs, (2) Connecting Plugs, Installation Instructions, Crimp Chart.
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
