Thomas & Betts K675LR-K2260-S 15/25KV 900A DB ELBOW ASSY K2260-S
- MPN: K675LR-K2260-S
- UPC: 075114258630
- PPN: T-B-K675LR-K2260-S
- UNSPSC: 39121421
CAD
$1086.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

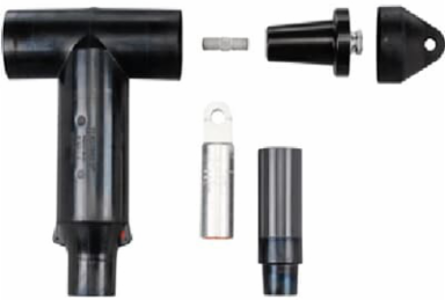

900 Amp, 15/25kV, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Compression Lug. Conductor Size Compressed Stranded 3/0 AWG or Compacted Solid 4/0 AWG. Cold-Shrinkable Jacket Seal Included.
Specifications
Additional Information
- Application
- Designed to provide fully shielded, dead-front submersible cable connections to high-voltage apparatus
- Color
- Black
- Current Rating
- 900 A
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 10.36 inch Wide x 13.00 inch from bottom to center of Bushing.
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 15 to 25 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20150825
MaterialHousing - EPDM Rubber
Product TypeDeadbreak Elbow Connector
Special FunctionsFully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
