Thomas & Betts K675LR-M2410 15/25KV 900A DB ELBOW ASSY M2410
- MPN: K675LR-M2410
- UPC: 783786296576
- PPN: T-B-K675LR-M2410
- UNSPSC: 39121421
CAD
$1201.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- Designed to provide fully shielded, dead-front submersible cable connections to high-voltage apparatus
- Color
- Black
- Current Rating
- 900 A
- Includes

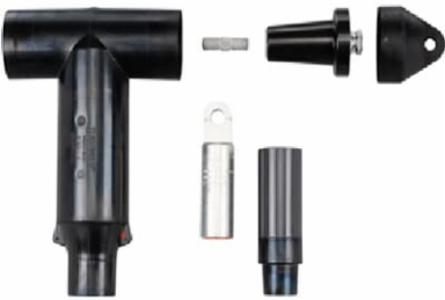

- 1 Elbow Connector Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 1 Cable Adapter, 1 Tube of Lubricant, Crimp Chart and Installation Instructions.
- Material
- Housing - EPDM Rubber
- Product Type
- Deadbreak Elbow Connector
- Special Functions
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Effective Date20010802
Insulation MaterialYes, EPDM Rubber
Product Nameelectrical connector,>1000v"
Size10.36 inch Wide x 13.00 inch from bottom to center of Bushing.
StandardsANSI/IEEE Standard 386
Voltage Rating15 to 25 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
