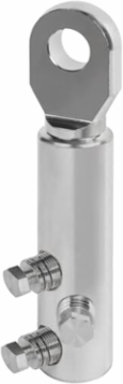

Thomas & Betts EACT-0300 15-35KV 600-900A SHEARBOLT CONN0300
- MPN: EACT-0300
- UPC: 075114343558
- PPN: T-B-EACT-0300
- UNSPSC: 39121466
CAD
$400.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/35kV, 600-900 Amps, Tin-Plated Aluminum ShearBolt Connector for #2 to 300 kcmil. Barrell Body Diameter 1.18 Inch (30mm), Length 4.13 inch (105mm), 1-Hole Pad Width 1.42 inch (36mm), .5 inch Thick, Pad Hole Diameter 0.689 inch (17.5mm). Includes Three M14 x 11 Round-Bottom Screws with 3/8 Hex Head.
Specifications
Dimensions
- Product Net Width
- 1.18 in30 mm
Product Net Depth / Length4.13 in105 mm
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4696 >> Mechanical connector lug and cap
Additional Information
- Application
- IEEE 386 Separable Connectors. 600/900 Amp Elbow Connectors, Vault Stretcher and Straight receptacles form 15, 25 and 35 kV. Solid and Stranded Aluminum and Copper Conductors.
- Color
- Tin
- Housing Material
- Tin-Plated Aluminum
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Special Functions
- Installs using a standard Wrench and Socket. Special design with grooves for an optimal contact. Designed and tested for use on both aluminum and copper conductors.
Brand / LabelElastimold
Effective Date20170616
Operating Head ShapeHex-Head
Product TypeShearbolt Connector
StandardsIEEE 386 Separable Connector
Ordering
- Country of Origin
- Germany (DE)
Selling Unit of Measureeach
