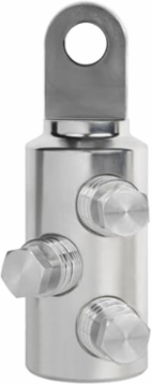

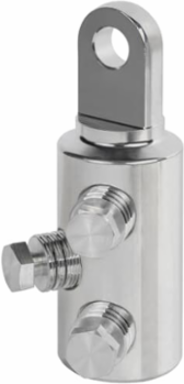

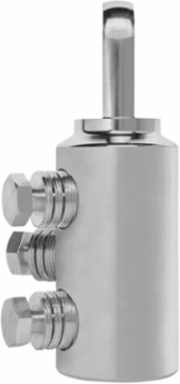

Thomas & Betts EACT-1250 15-35KV 600-900A SHEARBOLT CONN1250
- MPN: EACT-1250
- UPC: 075114343589
- PPN: T-B-EACT-1250
- UNSPSC: 39121466
CAD
$730.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/35kV, 600-900 Amps, Tin-Plated Aluminum ShearBolt Connector for 750 to 1250 kcmil. Barrel Body Diameter 2.05 Inch (52mm), Length 6.10 inch (155mm), 1-Hole Width 1.38 inch (35mm), .5 inch Thick, Hole Diameter 0.689 inch (17.5mm). Includes three M24 x 1.5 Round Bottom Screws with Hex Head.
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4696 >> Mechanical connector lug and cap |
|---|
Additional Information
| Application | IEEE 386 Separable Connectors. 600/900 Amp Elbow Connectors, Vault Stretcher and Straight receptacles form 15, 25 and 35 kV. Solid and Stranded Aluminum and Copper Conductors. |
|---|---|
| Color | Tin |
| Housing Material | Tin-Plated Aluminum |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Special Functions | Installs using a standard Wrench and Socket. Special design with grooves for an optimal contact. Designed and tested for use on both aluminum and copper conductors. |
| Brand / Label | Elastimold |
|---|---|
| Effective Date | 20170616 |
| Operating Head Shape | Hex-Head |
| Product Type | Shearbolt Connector |
| Standards | IEEE 386 Separable Connector |
Dimensions
| Product Net Width | 2.05 in52 mm |
|---|
| Product Net Depth / Length | 6.10 in155 mm |
|---|
Ordering
| Country of Origin | Germany (DE) |
|---|
| Selling Unit of Measure | each |
|---|
