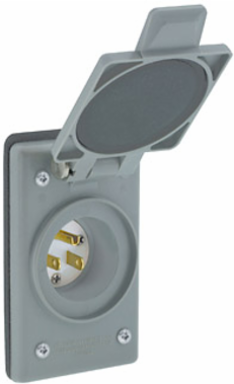

Leviton 5278-FWP 15 Amp 125 Volt Industrial Grade Power Inlet Receptacle, Nylon Body, Gray
- MPN: 5278-FWP
- UPC: 078477005774
- PPN: LEV-5278-FWP
CAD
$103.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp, 125 Volt, NEMA 5-15P, 2P, 3W, Power Inlet Receptacle, Straight Blade, Industrial Grade, Grounding, , Slots for Forked Terminals Wired, Nylon Strap - Gray
Features
- Leviton's Straight Blade Power Inlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
CSA C22.2 No. 42File LR-16347
UL498File E13393
Material Specifications
- Body Material
- Nylon
- Cover and Plate Material
- Glass-Filled Thermoplastic
- Grounding Screw
- Brass 8-32
- Strap Material
- Nylon
ColorGray
Face MaterialNylon
Line ContactsBrass
Terminal ScrewsBrass 10-32
Mechanical Specifications
- Product ID
- Markings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.18-10 AWG
TerminationSlots for Forked Terminals
Product Features
- Device Type
- Straight Blade Flanged Inlet
Warranty10-Year Limited
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 1500V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
