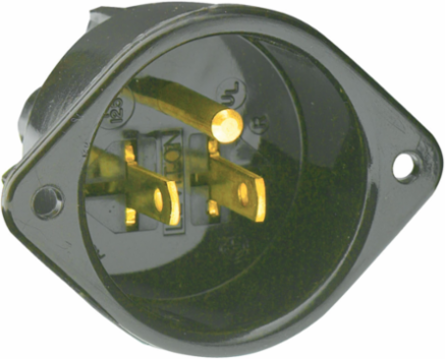

Leviton 5239 15 Amp 125 Volt Commercial Grade Flanged Inlet Receptacle, NEMA 5-15P, Nylon Face
- MPN: 5239
- UPC: 078477228906
- PPN: LEV-5239
CAD
$24.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp, 125 Volt, NEMA 5-15P, 2P, 3W, Flanged Inlet Receptacle, Straight Blade, Commercial Grade, Grounding, Back Wired, Thermoplastic Nylon Strap, - Black
Features
- Leviton's commercial/industrial grade flanged wiring devices are available in 15A & 20A versions and feature heavy duty construction for many years of service life.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- Listed
CSA C22.2 No. 42File LR-406
NOM Certified057
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
ColorBlack
Strap MaterialThermoplastic Nylon
Mechanical Specifications
- Cord Range
- .245 - .700
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, White-Neutral
Cutout Size1.83” to 1.85”
Terminal Accom.18-12 AWG
TerminationBack
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Temperature RiseMax 30C after 50 cycles OL at 150 percent rated current
Wire3
