Leviton

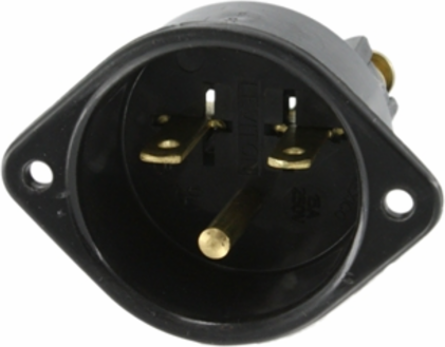

Leviton 5240 15 Amp, 250 Volt, Flanged Inlet Receptacle, Straight Blade, Commercial Grade

15 Amp, 250 Volt, Flanged Inlet Receptacle, Straight Blade, Commercial Grade
  • MPN: 5240
  • UPC: 078477229002
  • PPN: LEV-5240

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$24.70/ EA

Description

15 Amp, 250 Volt, NEMA 6-15P, 2P, 3W, Flanged Inlet Receptacle, Straight Blade, Commercial Grade, Grounding, Back Wired, Thermoplastic Nylon Strap - BLACK

Features

  • Leviton's commercial/industrial grade flanged wiring devices are available in 15A & 20A versions and feature heavy duty construction for many years of service life.

Specifications

Standards and Certifications

ANSI
C-73
NEMA
WD-6
UL
Listed
CSA C22.2 No. 42File LR-406
NOM Certified057

Material Specifications

Body Material
Nylon
Face Material
Nylon
ColorBlack
Strap MaterialThermoplastic Nylon

Mechanical Specifications

Cord Range
.245 - .700
Terminal Accom.
18-12 AWG
Termination
Back
Product IDRatings and NEMA I.D. permanently marked on device
Terminal IDBrass-Hot, Green-Ground, White-Neutral

Specifications

Country of Origin
Mexico
RoHS CompliantTrue

Environmental Specifications

Flammability
Rated V-2 per UL 94
Operating Temperature-40°C to 60°C

Electrical Specifications

Amperage
15 A
Dielectric Voltage
Withstands 2000V per UL498
Pole
2
Voltage
250 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Temperature RiseMax 30C after 50 cycles OL at 150 percent rated current
Wire3
