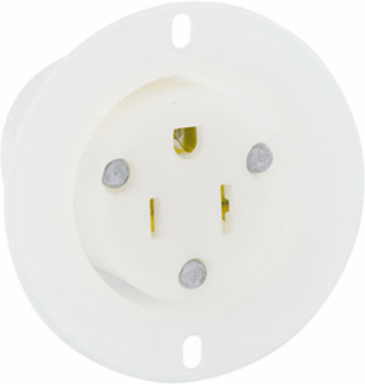

Leviton 5279-C 15 Amp Flanged Outlet Receptacle NEMA 5-15R, Industrial Grade, Nylon, 125 Volt
- MPN: 5279-C
- UPC: 078477795408
- PPN: LEV-5279-C
CAD
$41.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Flanged Outlet Receptacle, Straight Blade, Industrial Grade, Grounding, , Back Wired, Thermoplastic Nylon Strap - White
Features
- Leviton's Straight Blade Power Outlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL 498 | File E13399 |
| Warranty | Limited Lifetime Warranty Warranty |
| CSA C22.2 No. 42 | File LR-406 |
|---|---|
| NOM | 057 |
| UL Fed Spec WC-596 | File E13393 |
Material Specifications
| Assembly Screws | Steel, Zinc Plated |
|---|---|
| Body Material | Super Tough Nylon |
| Terminal Screws | Brass |
| Blades/Contacts | Solid Brass |
|---|---|
| Color | White |
| Wire Module | Nylon |
Mechanical Specifications
| Product ID | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal Accom. | 18-10 AWG |
| Torque Range | 10-14 in-lbs |
| Screw Terminal Torque | 10-14 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Product Features
| Brand | Black and White |
|---|---|
| Face Material | Nylon |
| Termination | Back |
| Device Type | Straight Blade Flanged Inlet |
|---|---|
| Strap Material | Thermoplastic Nylon |
Environmental Specifications
| Environment | Dry |
|---|---|
| Operating Temperature | -40°C to 60°C |
| Flammability | Rated V-2 per UL 94 |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Interrupting | Certified for current interrupting at full rated current |
|---|---|
| Grounding | Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
