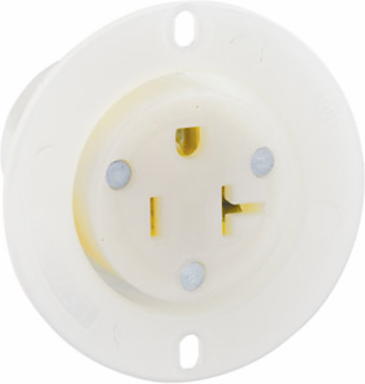

Leviton 15379-C 20 Amp 125 Volt Straight Blade Flanged Outlet Receptacle, NEMA 5-20R

20 Amp 125 Volt Straight Blade Flanged Outlet Receptacle, NEMA 5-20R
20 Amp 125 Volt Straight Blade Flanged Outlet Receptacle, NEMA 5-20R
  • MPN: 15379-C
  • UPC: 078477795996
  • PPN: LEV-15379-C

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$49.00/ EA

Description

20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Flanged Outlet Receptacle, Straight Blade, Industrial Grade, Grounding, , Back Wired, Thermoplastic Nylon Strap, - White

Features

  • Leviton's Straight Blade Power Outlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.

Specifications

Standards and Certifications

ANSI
C-73
NEMA
WD-6
UL 498
File E13399
Warranty
Limited Lifetime Warranty
CSA C22.2 No. 42File LR-406
NOM057
UL Fed Spec WC-596File E13393

Material Specifications

Assembly Screws
Steel, Zinc Plated
Body Material
Super Tough Nylon
Terminal Screws
Brass
Blades/ContactsSolid Brass
ColorWhite
Wire ModuleNylon

Mechanical Specifications

Product ID
Ratings and NEMA I.D. permanently marked on device
Terminal Accom.
18-10 AWG
Screw Terminal Torque10-14 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral

Specifications

Country of Origin
Mexico
RoHS CompliantTrue

Product Features

Brand
Black and White
Face Material
Nylon
Termination
Back
Device TypeStraight Blade Flanged Outlet
Strap MaterialThermoplastic Nylon

Environmental Specifications

Environment
Dry
Operating Temperature
-40°C to 60°C
FlammabilityRated V-2 per UL 94

Electrical Specifications

Amperage
20 A
Dielectric Voltage
Withstands 2000V per UL498
Pole
2
Voltage
125 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3

Downloads
