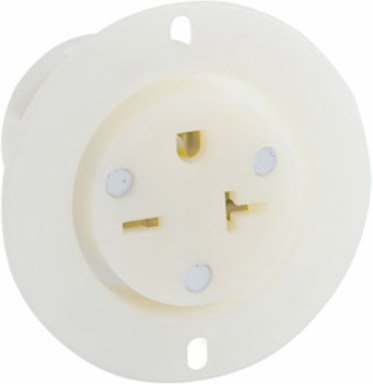

Leviton 5479-C Industrial Grade 20 Amp 250 Volt Flanged Outlet Receptacle, NEMA 6-20R
- MPN: 5479-C
- UPC: 078477796085
- PPN: LEV-5479-C
CAD
$49.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

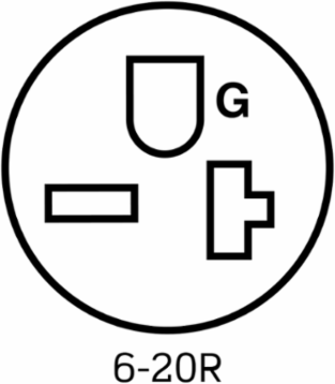

20 Amp, 250 Volt, NEMA 6-20R, 2P, 3W, Flanged Outlet Receptacle, Straight Blade, Industrial Grade, Grounding, , Back Wired, Thermoplastic Nylon Strap - White
Features
- Leviton's Straight Blade Power Outlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL 498
- File E13399
- Warranty
- Limited Lifetime Warranty Warranty
CSA C22.2 No. 42File LR-406
NOM057
UL Fed Spec WC-596File E13393
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Body Material
- Super Tough Nylon
- Terminal Screws
- Brass
Blades/ContactsSolid Brass
ColorWhite
Wire ModuleNylon
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 18-10 AWG
Screw Terminal Torque10-14 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Product Features
- Brand
- Black and White
- Face Material
- Nylon
- Termination
- Back
Device TypeStraight Blade Flanged Inlet
Strap MaterialThermoplastic Nylon
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 250 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
