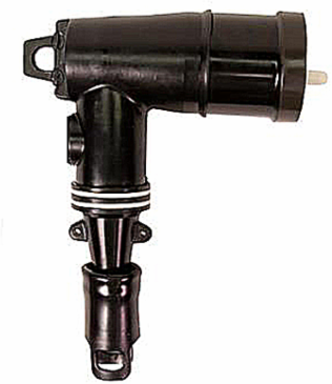

Thomas & Betts 161LRJS-C-5270 Loadbreak Elbow Connector and Jacket Seal

MPN: 161LRJS-C-5270
UPC: 007511418553
PPN: T-B-161LRJS-C-5270

$224.40

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15kV 200 Amp, Loadbreak Jacket Seal Elbow Connector, .805 inch - 1.060 Inch Cable Insulation Diameter, 4/0 Stranded Wire Size, Bi-Metal Compression Lug

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Built in Cable Jacket Seal.
Standard	ANSI/IEEE Standard 386
Material	Housing - EPDM Rubber
Voltage Rating	15kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water.

IGCC	4586 Electrical connector assembly
Type	Loadbreak Elbow Connector and Jacket Seal
Application	The 161LRJS is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems.
Conductor Range	4/0 Stranded Wire Size
Color	Black
Amperage Rating	200 Amps
Temperature Rating	-20 Degrees C to +65 Degrees C
Consist Of	(1) Elbow Connector Housing, (1) Bi-Metal Compression Lug, (1) Probe, (1) Lubricant Tube, (1) Crimp Chart, (1) Butyl Auto Tape, (1) Installation Instructions
