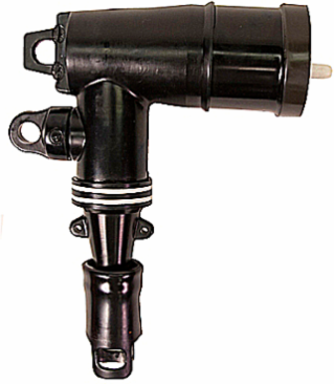

Thomas & Betts 162LRJS-A5210 Loadbreak Elbow Connector with Test Point and Jacket Seal
- MPN: 162LRJS-A5210
- UPC: 075114190701
- PPN: T-B-162LRJS-A5210
CAD
$235.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point, .575 inch - .740 Inch Cable Insulation Diameter, #3 Stranded Wire Size, Bi-Metal Compression Lug
Specifications
Packaging
- Inner Quantity
- 1
- Outer Dimensions (inches)
- 19.1x12.78x11.2
Outer Quantity15
Weight Uom1 lbs. Each
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Built in Cable Jacket Seal. Non-Corrosive Capacitive Test Point.
- Standard
- ANSI/IEEE Standard 386
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water.
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector with Test Point and Jacket Seal
ApplicationThe 162LRJS is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems.
Conductor Range#3 Stranded Wire Size
ColorBlack
Amperage Rating200 Amps
Temperature Rating-20 Degrees C to +65 Degrees C
Consist Of(1) Elbow Connector Housing, (1) Bi-Metal Compression Lug, (1) Probe, (1) Lubricant Tube, (1) Crimp Chart, (1) Butyl Auto Tape, (1) V.D. Cap-Peroxide, (1) Installation Instructions
