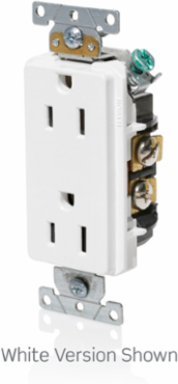

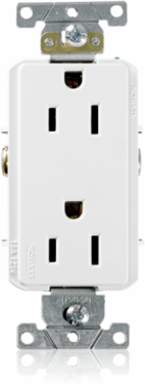

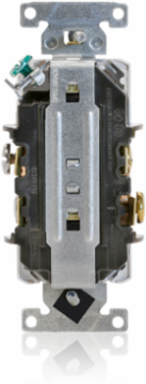

Leviton 16252-W Decora Plus 15 Amp Duplex Receptacle Outlet, Industrial Grade, Self-Grounding, NEMA 5-15R
Leviton 16252-W Decora Plus 15 Amp Duplex Receptacle Outlet, Industrial Grade, Self-Grounding, NEMA 5-15R
- MPN: 16252-W
- UPC: 078477819685
- PPN: LEV-16252-W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$4.75/ EA
Description
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back and Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White
Features
- Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
Standards and Certifications
- ANSI
- C-73
- At Rated Voltage
- 1/2 HP
- RoHS
- RoHS Compliant
Applicable StandardsUL 498, Fed Spec W-C-596, CSA C22.2 No.42
Certification/ListingcULus, NON-ANCE
Warranty10-Year Limited
Material Specifications
- Body Material
- PBT Polyester Blend
- Face Material
- PBT Polyester Blend
- Grounding Screw
- #8 Hex Head, Triple-Drive Brass
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Terminal Screws
- #8 Triple-Drive Brass
ColorWhite
Ground ClipsBrass-Plated
Line Contacts0.030" Phosphor Bronze
Strap MaterialSteel (Galvanized G60)
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
TerminationBack and Side Wire
Mechanical Specifications
- Brand
- Decora Plus
- Device Type
- Duplex Receptacle Outlet
- NEMA
- 5-15R
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
ColorWhite
GradeHeavy-Duty Industrial Specification Grade
Product IDRatings are permanently marked on device
Terminal Accom.14-10 AWG
TerminationBack and Side Wire
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Feature
- Smooth Face
Environmental Specifications
- Body Material
- PBT Polyester Blend
- Face Material
- PBT Polyester Blend
- Ground Clips
- Brass-Plated
- Line Contacts
- 0.030" Phosphor Bronze
- Strap Material
- Steel (Galvanized G60)
ColorWhite
FlammabilityRated V-2 per UL 94
Grounding Screw#8 Hex Head, Triple-Drive Brass
Operating Temperature-40°C to 60°C
Terminal Screws#8 Triple-Drive Brass
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 3000V min
- Grounding
- Self-Grounding
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
FlammabilityRated V-2 per UL 94
Operating Temperature-40°C to 60°C
Temperature RiseMax 30°C temperature rise at full rated current
Wire3
AC Horsepower Ratings
- Amperage
- 15 A
- Current Limiting
- Full Rated Current
- Grounding
- Self-Grounding
- Temperature Rise
- Max 30°C temperature rise at full rated current
- Wire
- 3
At Rated Voltage1/2 HP
Dielectric VoltageWithstands 3000V min
Pole2
Voltage125 VAC
