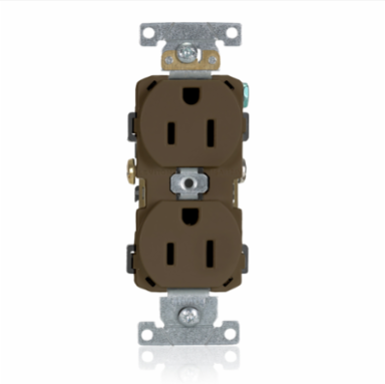

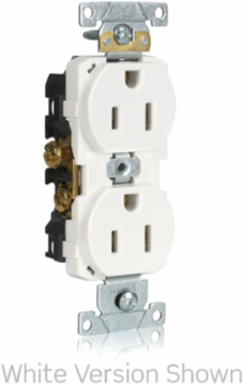

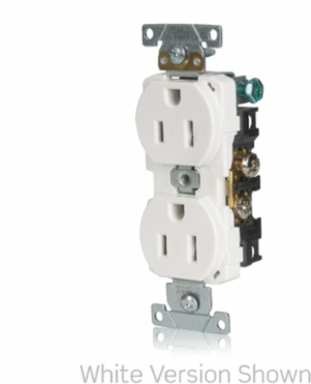

Leviton CR015 15 Amp Commercial Grade Duplex Receptacle Outlet, Self-Grounding, 125 Volt, Brown

15 Amp Commercial Grade Duplex Receptacle Outlet, Self-Grounding, 125 Volt, Brown
15 Amp Commercial Grade Duplex Receptacle Outlet, Self-Grounding, 125 Volt, Brown
15 Amp Commercial Grade Duplex Receptacle Outlet, Self-Grounding, 125 Volt, Brown
  • MPN: CR015
  • UPC: 078477815212
  • PPN: LEV-CR015

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$4.64/ EA

Description

Duplex Receptacle Outlet, Commercial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Brown

Features

  • Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

Specifications

Voltage
125 VAC
Horsepower Rating
1/2 HP at rated voltage
Operating Temperature Range
-40°C to 60°C
Wire
3
Terminal Accommodation
14-10 AWG
Line Contacts
Brass Double Wipe .031 Thick
Face Material
Nylon
Grounding Screw Material
Steel 8-32
Grounding
Self-Grounding
Compliance
RoHS Compliant, UL Listed, CSA Certified
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Grade
Commercial Specification Grade
Applicable Standards
UL 498, Fed Spec W-C-595G, CSA C22.2 No. 42
Amperage15 A
Current LimitingFull Rated Current
Pole2
Termination TypeSide Wire
Strap MaterialZinc-Plated Steel
Body MaterialNylon
Ground Clips MaterialBrass-Plated
Terminal Screws MaterialSteel 8-32
NEMAWD-2 WD-6
Dielectric VoltageWithstands 2000V per UL498
Country of OriginMexico
ANSIC-73
Temperature RiseMax 30°C after 100 cycles OL at 150% rated current

Downloads
