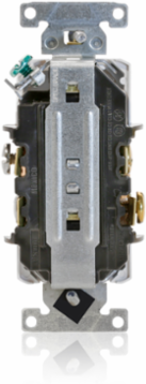

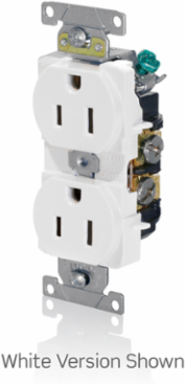

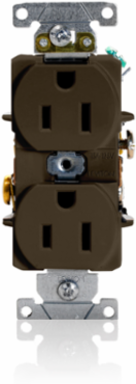

Leviton 5252 Heavy-Duty Industrial Grade Duplex Receptacle Outlet 15 Amp 125 Volt Self-Grounding Brown
- MPN: 5252
- UPC: 078477819548
- PPN: LEV-5252
CAD
$8.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Brown
Features
- Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- AC Horsepower Rating
- 1/2 HP at rated voltage
- Wire
- 3
- Operating Temperature
- -40°C to 75°C
- Grounding
- Self-Grounding
- Termination
- Back and Side Wire
- Strap Material
- Galvanized Steel with Riveted Ground Contacts
- Ground Clips
- Brass
- Line Contacts
- 0.030 in Phosphor Bronze
- Body Material
- PBT Polyester Blend
- NEMA
- 5-15R, WD-1 & WD-6
- Terminal ID
- Brass-Hot, Silver-Neutral, Green-Ground
- Device Type
- Duplex Receptacle Outlet
Voltage125 VAC
Pole2
Dielectric Voltage3000 V minimum
Terminal Accommodations#14-#10 AWG
GradeHeavy-Duty Industrial Specification Grade
Temperature RiseMax 30°C after 250 cycles OL at 200% rated current
Clamp NutsSteel (Galvanized G60)
Grounding Screw#8 Hex Head, Triple-Drive Brass
Terminal Screws#8 Triple-Drive Brass
Flammability RatingUL 94 V-0
ComplianceRoHS, ANSI C-73, CSA C22.2 No. 42, NOM 057, UL Fed Spec WC-596, UL498
ColorBrown
Country of OriginMexico
