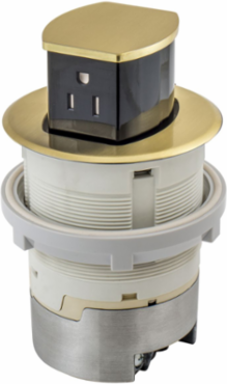

Bryant RCT200BR 15A Surface Mount Kitchen Counter Receptacle, Brass, 4.20 x 4.20 x 6.48 Inch
Bryant RCT200BR 15A Surface Mount Kitchen Counter Receptacle, Brass, 4.20 x 4.20 x 6.48 Inch
- MPN: RCT200BR
- UPC: 883778307959
- PPN: HBL-RCT200BR
- UNSPSC: 39121309
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$298.37/ EA
Description
15A Kitchen Counter Receptacle, Surface Mount, Brass
Features
- Spill water tested
- UL Listed for countertop installation.
- Permanent installation ready (suitable for MC cable or non-metallic sheath cable
- Push down to pop-up function is rated for a minimum of 10,000 cycles
- Easy installations - simply drop in and tighten.
- Surface Mount
Specifications
Specifications
- Country of Origin
- CN
- Dimensions
- 4.20 in x 4.20 in x 6.48 in
- Industry Standard(s)
- UL
- Color
- Brass
- Height
- 6.48 in
- Material
- 200 Meunt
- Special Features
- Surface Mount
- Sub Brand
- Under Counter Boxes
- Width
- 4.20 in
- Construction Material - Main
- 200 Meunt
- Nema Rating
- 5-15R
- Number Of Wires
- 3
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Series
- Countertop Receptacle
- BOX SIZE
- 6.600x22.600x9.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00883778307959
- Case Weight
- 16.450 lb.
- Pallet Height
- 50.000 in
- Pallet Weight
- 900.000 lb.
Current / Amperage Rating15 A
Each - Width4.600 in
ApplicationPower on Counter Top
ConstructionFabricated
Length4.20 in
Size4.20 in x 4.20 in x 6.48 in
StandardUL
TypePower Only
Voltage Rating Description125 V
Construction Material -Main partFabricated
Number Of Poles2
StyleSurface
Harmonization Code8536698000
MSDS FlagNo
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Pallet - GTIN - Package70883778307958
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Contact Manufacturer
