Bryant RCT220ALU 20A Kitchen Counter Receptacle, Surface Mount, 4.20 Inch x 4.20 Inch x 6.48 Inch
- MPN: RCT220ALU
- UPC: 883778309472
- PPN: HBL-RCT220ALU
- UNSPSC: 39121309
CAD
$347.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

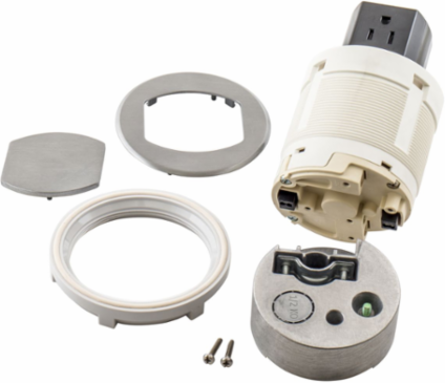

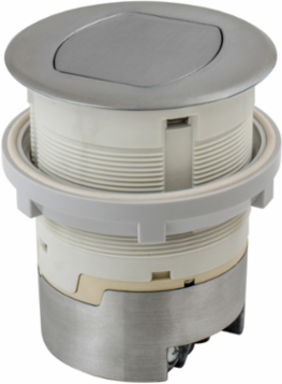

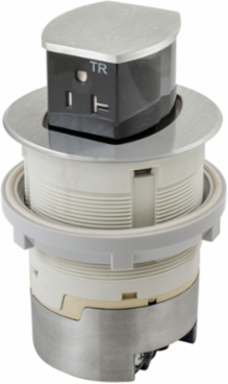

20A Kitchen Counter Receptacle, Surface Mount, Aluminum
Features
- Spill water tested
- UL Listed for countertop installation.
- Permanent installation ready (suitable for MC cable or non-metallic sheath cable
- Push down to pop-up function is rated for a minimum of 10,000 cycles

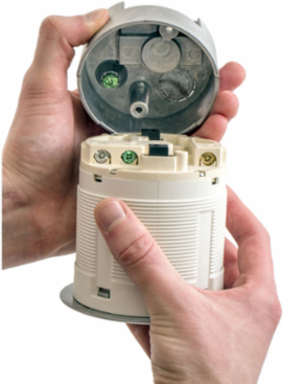

- Easy installations - simply drop in and tighten.
- Surface Mount
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 4.20 in x 4.20 in x 6.48 in
- Application
- Power on Counter Top
- Color
- Aluminum
- Height
- 6.48 in
- Material
- 220 Meunt
- Number of Outlet
- 1 Duplex
- Special Features
- Surface Mount
- Sub Brand
- Furniture Boxes
- Width
- 4.20 in
- General Literature Asset 1 Display Text
- Tri-Power Pop-up Receptacles Quick Installation Setup Guide
- Construction Material - Main
- 220 Meunt
- Mounting Type
- In Kitchen Counter Top
- Number Of Outlets
- 1 Duplex
- Number Of Wires
- 3
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Series
- Countertop Receptacle
- BOX SIZE
- 6.400x22.700x9.300 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00883778309472
- Case Weight
- 16.650 lb.
- Pallet Height
- 44.800 in
- Pallet Weight
- 1048.950 lb.
Current / Amperage Rating20 A
Industry Standard(s)UL
Cable EntryKos in Bottom
ConstructionFabricated
Length4.20 in
MountingIn Kitchen Counter Top
Size4.20 in x 4.20 in x 6.48 in
StandardUL
TypePower Only
Voltage Rating Description125 V
General Literature Asset 2 Display TextTri-Power Pop-up Receptacles Quick Installation Setup Guide
Construction Material -Main partFabricated
Nema Rating5-20R
Number Of Poles2
StyleSurface
Harmonization Code8536698000
MSDS FlagNo
Base Unit of MeasureEA
Carton - Gross Weight per Pack15.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Pallet - GTIN - Package70883778309471
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Contact Manufacturer
