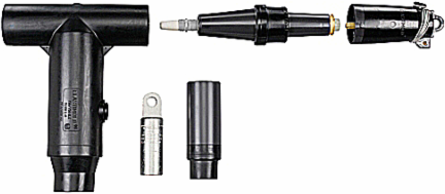

Thomas & Betts 755LRTP-N0380-DRG Stick-OP Elbow Connector
- MPN: 755LRTP-N0380-DRG
- UPC: 783786453245
- PPN: T-B-755LRTP-N0380-DRG
CAD
$1895.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 35kV, Stick-Op Connector Kit with Test Point, Insulated Cap and Reducing Tap Plug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Test Point. 35kV Reducing Tap Plug. Includes Hex-Broach for Torque Installation. Peroxide-Cured Insulation and Jacket.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
- Color
- Black
- Amperage Rating
- 600/200 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
- Consist Of
- Elbow Housing, Reducing Tap Plug, Insulated Cap, Cable Size Adapter, Compression Lug, Lubricant, Instruction Sheet, Crimp Chart.
IGCC4586 Electrical connector assembly
TypeStick-OP Elbow Connector
ApplicationMates with a 600 Amp elbow interface and provides a 200 Amp load break tap, an access hole thru the bore of the reducing tap plug allows use of a 600AT operating tool to bolt and secure the component to a mating 600 Amp elbow and apparatus bushing.
SizeCable Insulation Diameter 1.515 inch to 1.780 inch.
MaterialHousing - EPDM Rubber
Voltage Rating35kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
