Thomas & Betts 168RLR-H-240 15KV 200A LB REPAIR ELBOW H5240
- MPN: 168RLR-H-240
- UPC: 783786646289
- PPN: T-B-168RLR-H-240
- UNSPSC: 39121421
CAD
$874.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact.
Specifications
Additional Information
- Application
- Repair of a Failed Elbow Connection.
- Color
- Black
- Current Rating
- 200 A
- Environmental Conditions
- All Weatheronditions °C
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- PRIMARY CABLE ACC. 200 SEP CON
- Size
- Body Width without Probe 7.95 inches. Length 18.00 inches from Bottom Edge to Center of Installation O-Ring.
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 15 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date19980115

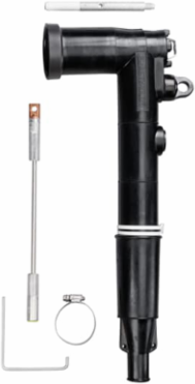

Includes(1) Elbow Housing, (1) Compression Lug, (1) Probe, (1) Probe Wrench, (1) Tube Lubricant, (1) Hose Clamp, Installation Instructions, Crimp Chart.
MaterialHousing - EPDM Rubber
Product TypeLoadbreak Replacement Elbow Connector with Test Point
Special FunctionsExtended Length Housing and Compression Lug. Fully Shielded, Fully Submersible Molded Rubber Housing. 100 Percent Peroxide-Cured Insulation, Insert and Jacket. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Non-Corrosive Capacitive Test Point.
Temperature Range-40 to +65 °C
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
