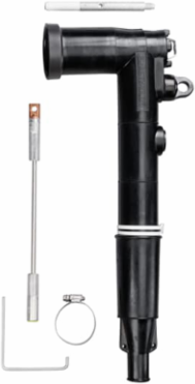

Thomas & Betts 168RLR-J5270 15KV REPLACEMNT ELBOW 200A N-SEAL
- MPN: 168RLR-J5270
- UPC: 075114408639
- PPN: T-B-168RLR-J5270
- UNSPSC: 39121421
CAD
$915.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG Compressed Stranded 4/0 or Solid Compact 250 kcmil or mmSquared 126.67. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes Elbow Connector Housing, Long Bi-Metal Compression Lug, Probe Wrench, Probe, Hose Clamp, Crimp Chart, Installation Instructions and Tube of Lubricant.
Specifications
Additional Information
| Application | Designed for connecting to and operating 15kV Class, 95kV BIL apparatus. |
|---|---|
| Color | Black |
| Current Rating | 200 A |
| Environmental Conditions | Fully Submersible |
| Insulation Material | Yes, EPDM Rubber |
| Product Main Type | ELASTIMOLD 200A SEPARABLE CONNECTORS |
| Product Type | Loadbreak Replacement Elbow Connector with Test Point |
| Special Functions | Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 10-1/2 inch (266.7mm). Non-Corrosive Capacitive Test Point |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 20200407 |
| Includes | Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Installation Instructions, Crimp Chart, Hose Clamp and V.D. Cap-Peroxide. |
| Material | Housing - EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR>1000V |
| Size | Cable Insulation Diameter 0.980 inch to 1.180 inch |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 15 kV |
Classifications
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
