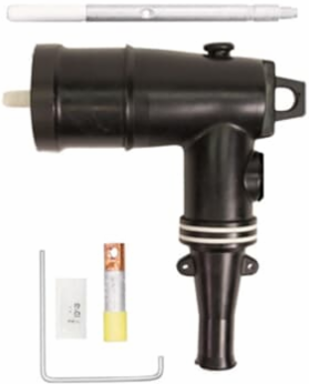

Thomas & Betts 161LR-C2250-SG3 15KV ELBOW 200A LB W-SELAING KIT
- MPN: 161LR-C2250-SG3
- UPC: 075114398220
- PPN: T-B-161LR-C2250-SG3
- UNSPSC: 39121421
CAD
$377.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15KV, 200 Amp, Loadbreak Elbow, Cable Insulation Diameter 0.805 inch to 1.060 inch. Copper Compression Lug. Conductor Size AWG Compressed/Stranded 2/0 or Solid/Compact 3/0. 200ECS-G3 Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
Features
- 200ECS-G3 Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Connection
- Compression
- Conductor Range
- 2/0 STR/COMPR AWG , 3/0 SOL/COMPT AWG
- Voltage Rating
- 15 kV
- Amperage Rating
- 200 A
- Temperature Rating
- -40 to +65 C
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application15 kV, 200 Amp. The 161LR is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems
StandardANSI/IEEE Standard 386
MaterialHousing - EPDM Rubber
ColorBlack
InsulationEPDM Rubber
Environmental ConditionsProducts are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water
