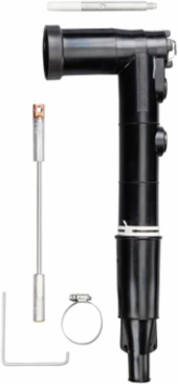

Thomas & Betts 167RLR-K5270 15KV 200A LB REPLACE ELBOW K5270
- MPN: 167RLR-K5270
- UPC: 783786502028
- PPN: T-B-167RLR-K5270
- UNSPSC: 39121421
CAD
$891.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 200 Amp, Loadbreak Replacement Elbow Connector
Specifications
Additional Information
- Application
- Designed for connecting to and operating 15kV Class, 95kV BIL apparatus.
- Color
- Black
- Effective Date
- 20060915
- Includes
- Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Installation Instructions, Crimp Chart and Hose Clamp.
- Material
- Housing - EPDM Rubber
- Product Type
- Loadbreak Replacement Elbow Connector
- Special Functions
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended length housing and compression lug plus 10-1/2 inch (266.7mm).
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating200 A
Environmental ConditionsFully Submersible
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
SizeCable Insulation Diameter 1.090 inch to 1.310 inch
StandardsANSI/IEEE Standard 386
Voltage Rating15 kV
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
