Thomas & Betts 162LR-A-5210-S 15KV 200A LB TP ELBOW A5210-S
- MPN: 162LR-A-5210-S
- UPC: 075114392303
- PPN: T-B-162LR-A-5210-S
- UNSPSC: 39121421
CAD
$276.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

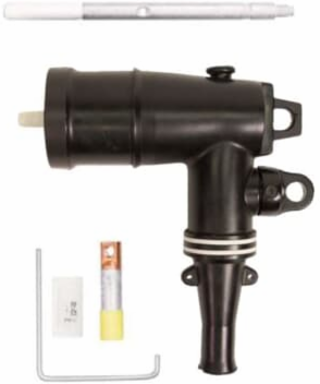

200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.575 inch to 0.740 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #3, Solid #2, 26.67 mm2. 200ECS Jacket Seal Included. ANSI/IEEE Standard 386. Includes Elbow Housing, Compression Lug, Probe, Probe Wrench, Lubricant, V.D Cap-Peroxide, Crimp Chart, Installation Instructions.
Features
- Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Non-Corrosive Capacitive Test Point
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Standard
- ANSI/IEEE Standard 386
- Material
- Housing - EPDM Rubber
- Color
- Black
- Insulation
- Yes EPDM Rubber
- Environmental Conditions
- Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
ApplicationThe 162LR is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems
Conductor Range#3 STR/COMPR AWG , #2 SOL/COMPT AWG
Voltage Rating15 kV
Amperage Rating200 A
Temperature Rating-40 to +65 C
