Thomas & Betts J3-226-15-SV 15KV 3 POINT 226 JUNCTION 6.5SP
- MPN: J3-226-15-SV
- UPC: 783786272624
- PPN: T-B-J3-226-15-SV
- UNSPSC: 26121630
CAD
$3038.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

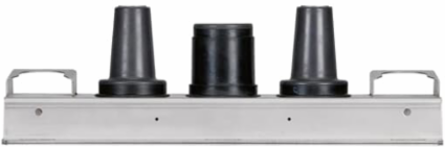

3 Point Junction, with two 200 Amp Bushing Well Interfaces and one 600 Amp Bushing Interface, 15kV, 6-1/2 inch centers. No Tilt Mounting.
Specifications
Additional Information
| Application | Suited for Subsurface, Vault or Padmount Applications and can be used for Sectionalizing, Looping, Tapping and Equipment Bypass. |
|---|---|
| Connection Type | Push-In |
| Mounting Type | No Tilt Mounting Bracket. |
| Product Type | Multi-Point Junction - 3 Points |
| Special Functions | 6-1/2 inch Center Spacing. |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Effective Date | 20010220 |
| Product Name | electrical connector,>1000v" |
| Size | Overall Length 26 inches, Width 6-3/4 inches. |
| Standards | ANSI/IEEE Standard 386 |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
