Thomas & Betts J5-22226-15-SV 15KV 5 POINT 22226 JUNCTION 6.5SP
- MPN: J5-22226-15-SV
- UPC: 783786272631
- PPN: T-B-J5-22226-15-SV
- UNSPSC: 26121630
CAD
$2905.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

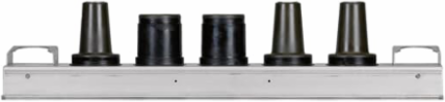

5 Point Junction, with four 200 Amp Bushing Well Interfaces and one 600 Amp Bushing Interface, 15kV, 6-1/2 inch centers. No Tilt Mounting.
Specifications
Additional Information
- Application
- Suited for Subsurface, Vault or Padmount Applications and can be used for Sectionalizing, Looping, Tapping and Equipment Bypass.
- Connection Type
- Push-In
- Material
- EPDM Rubber and Stainless Steel Mounting Brackets.
- Product Name
- electrical connector,>1000v"
- Size
- Overall Length 39 inches, Width 6-3/4 inches.
- Standards
- ANSI/IEEE Standard 386
Brand / LabelElastimold
Effective Date20010220
Mounting TypeNo Tilt Mounting Bracket.
Product TypeMulti-Point Junction - 5 Points
Special Functions6-1/2 inch Center Spacing.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)1779 >> Cable accessories
