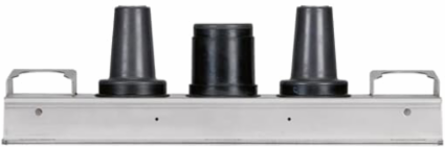

Thomas & Betts J3-266-15-SV 15KV 3 POINT 266 JUNCTION 6.5SP
- MPN: J3-266-15-SV
- UPC: 783786439072
- PPN: T-B-J3-266-15-SV
- UNSPSC: 26121630
CAD
$2505.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3 Point Junction, one - 200 Amp Bushing Well interface, two - 600 Amp Bushing interface, 25KV, with Bracket, SV - Optional 6-1/2 inch spacing
Specifications
Additional Information
- Application
- Suited for Subsurface, Vault or Padmount Applications and can be used for Sectionalizing, Looping, Tapping and Equipment Bypass.
- Connection Type
- Push-In
- Material
- EPDM Rubber and Stainless Steel Mounting Brackets.
- Product Name
- ELECTRICAL JUNCTION,>1000V
- Size
- Overall Length 26 inches, Width 6-3/4 inches.
- Standards
- ANSI/IEEE Standard 386
Brand / LabelElastimold
Effective Date20040924
Mounting TypeNo Tilt Mounting Bracket.
Product TypeMulti-Point Junction - 3 Points
Special Functions6-1/2 inch Center Spacing.
Temperature Range-40 to +65 °C
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)1779 >> Cable accessories
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
