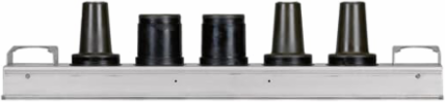

Thomas & Betts J5-62266-15-SV 15KV 5 POINT 62266 JUNCTION 6.5SP
- MPN: J5-62266-15-SV
- UPC: 075114166270
- PPN: T-B-J5-62266-15-SV
- UNSPSC: 26121630
CAD
$3017.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
5 Point Junction, with one 600 Amp Bushing Interfaces, two 200 Amp Bushing Well Interfaces and two 600 Amp Bushing Interfaces, 15kV, 6-1/2 inch centers. No Tilt Mounting.
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
Additional Information
| Application | Suited for Subsurface, Vault or Padmount Applications and can be used for Sectionalizing, Looping, Tapping and Equipment Bypass. |
|---|---|
| Connection Type | Push-In |
| Material | EPDM Rubber and Stainless Steel Mounting Brackets. |
| Product Name | ELECTRICAL JUNCTION BOX |
| Size | Overall Length 39 inches, Width 6-3/4 inches. |
| Standards | ANSI/IEEE Standard 386 |
| Brand / Label | Elastimold |
|---|---|
| Effective Date | 20140314 |
| Mounting Type | No Tilt Mounting Bracket. |
| Product Type | Multi-Point Junction - 5 Points |
| Special Functions | 6-1/2 inch Center Spacing. |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
