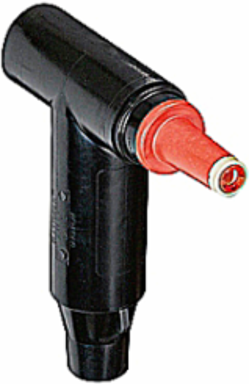

Thomas & Betts 655CETP-H0270-DRG-S ComboT Elbow
- MPN: 655CETP-H0270-DRG-S
- UPC: 075114332026
- PPN: T-B-655CETP-H0270-DRG-S
CAD
$1907.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

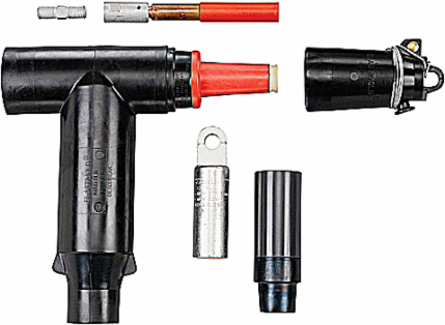

15kV, 600 Series ComboT Elbow with 200 Amp Reducing Tap Plug, Stud, Cable Adapter, Lug and Insulated Cap Kit, without Test Point, with Sealing Kit. Cable Insulation Diameter Range 0.850 to 1.050 inches, Aluminum Lug, 4/0 Stranded/Compressed or 250 Solid/Compact.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Compressed/Stranded 4/0 or Compact/Solid 250
- Color
- Black
- Amperage Rating
- 600 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
- Consist Of
- Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Insulated Cap, Crimp Chart and Installation Instructions.
IGCC4586 Electrical connector assembly
TypeComboT Elbow
Application600 Amps, 15kV Connector
Size13.31 inches width, 10.88 inch bottom edge to center of bushing.
MaterialHousing - EPDM Rubber
Voltage Rating15kV
InsulationYes, EPDM Rubber
Environmental ConditionsAll Weather
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
