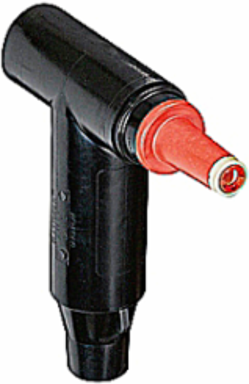

Thomas & Betts 655CETPN0410DRG ComboT Elbow
- MPN: 655CETPN0410DRG
- UPC: 783786342853
- PPN: T-B-655CETPN0410DRG
CAD
$1892.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15kV, Combo T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap Kit, No Test Point, Aluminum, Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size AWG or kcmil, Compressed Stranded 1000.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Compressed/Stranded 1000.
- Color
- Black
- Amperage Rating
- 600 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
- Consist Of

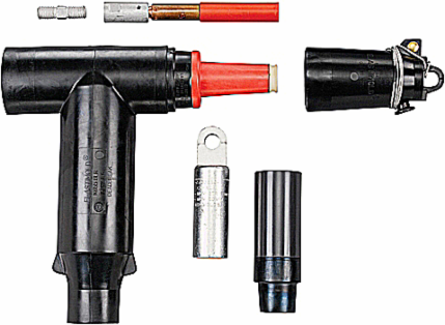

- Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Insulated Cap, Crimp Chart and Installation Instructions.
IGCC4586 Electrical connector assembly
TypeComboT Elbow
Application600 Amps, 15kV Connector
Size13.31 inches width, 10.88 inch bottom edge to center of bushing.
MaterialHousing - EPDM Rubber
Voltage Rating15kV
InsulationYes, EPDM Rubber
Environmental ConditionsAll Weather
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
