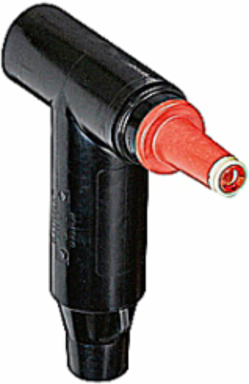

Thomas & Betts 655CETP-M0380-SG3 ComboT Elbow
- MPN: 655CETP-M0380-SG3
- UPC: 075114333023
- PPN: T-B-655CETP-M0380-SG3
CAD
$1889.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15kV, Combo T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug, No Test Point, Aluminum, Cable Insulation Diameter 1.370 inch to 1.630 inch. Sealing Kit - Cold Shrinkable Seal with Copper Braid and Constant Force Spring.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | Reducing Tap Plug with Stud, Cable Adapter, and Lug |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 750 Stranded/Compressed, 900 Solid/Compact. |
| Color | Black |
| Amperage Rating | 600 Amps |
| Temperature Rating | -20 Degrees C to +65 Degrees C |
| Consist Of | Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Crimp Chart and Installation Instructions. |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | ComboT Elbow |
| Application | 600 Amps, 15kV Connector |
| Size | 13.31 inches width, 10.88 inch bottom edge to center of bushing. |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 15kV |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | All Weather |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
