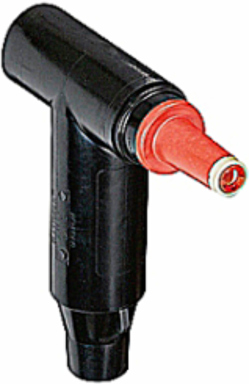

Thomas & Betts 655CETPH0270DRG ComboT Elbow
- MPN: 655CETPH0270DRG
- UPC: 075114175029
- PPN: T-B-655CETPH0270DRG
CAD
$2157.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15kV, Combo T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap Kit, No Test Point, Aluminum, Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | Compressed/Stranded 4/0 or Compact/Solid 250 |
| Color | Black |
| Amperage Rating | 600 Amps |
| Temperature Rating | -20 Degrees C to +65 Degrees C |

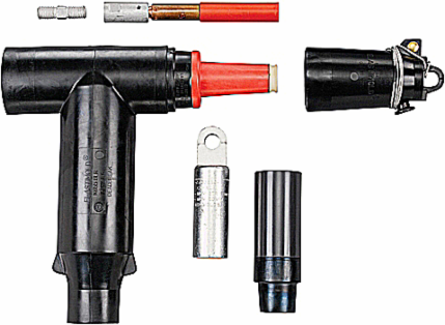

| Consist Of | Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Insulated Cap, Crimp Chart and Installation Instructions. |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | ComboT Elbow |
| Application | 600 Amps, 15kV Connector |
| Size | 13.31 inches width, 10.88 inch bottom edge to center of bushing. |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 15kV |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | All Weather |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
