Thomas & Betts 655CETPL5330-DRG 15KV 600A DB COMBO-T L5330-DRG

15KV 600A DB COMBO-T L5330-DRG

Thomas & Betts 655CETPL5330-DRG 15KV 600A DB COMBO-T L5330-DRG

MPN: 655CETPL5330-DRG
UPC: 075114295338
PPN: T-B-655CETPL5330-DRG
UNSPSC: 39121421

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2523.08/ EA

Loading add to cart quantity...

Description

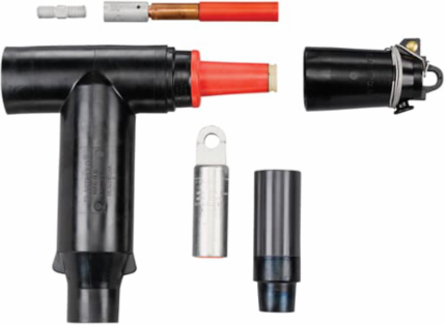

15kV, 600 Amp, Combo T Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap Kit. Cable Insulation 1.180-1.465 inches. Copper/Aluminum Bi-Metal Connector Type, Connector Size 500 Stranded/Compressed or 600 Compact/Solid. With Insulated Cap. No Test Point.

Specifications

Additional Information

Application: 600 Amps, 15kV Connector

Color: Black

Effective Date: 20160310

Includes: Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Insulated Cap, Crimp Chart and Installation Instructions.

Material: Housing - EPDM Rubber

Product Type: ComboT Elbow

Special Functions: Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap

Temperature Range: -40 to +65 °C

Brand / LabelElastimold

Current Rating600 A

Environmental ConditionsAll Weatheronditions °C

Insulation MaterialYes, EPDM Rubber

Product NameELECTRICAL CONNECTOR,>1000V

Size13.31 inches width, 10.88 inch bottom edge to center of bushing.

StandardsANSI/IEEE Standard 386

Voltage Rating15 kV

Classifications

WEEE Category: Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly

Ordering

Country of Origin: United States (US)

Selling Unit of Measureeach
