Thomas & Betts 656CETP-L0300-DRG 15KV 600A COMBO T W-CAP
- MPN: 656CETP-L0300-DRG
- UPC: 075114396899
- PPN: T-B-656CETP-L0300-DRG
- UNSPSC: 39121421
CAD
$2173.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

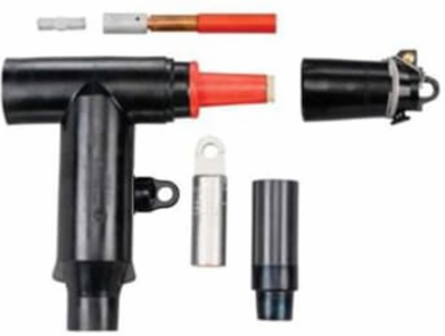

15kv, 600 Amps, Deadbreak Combo-T Elbow Reducing Tap Plug with Stud, Cable Adapter, Aluminum Lug and Insulated Cap kit. Has Test Point. Cable Insulation Diameter Range 1.180 to 1.465 inch. Connector Range 350 kcmil Stranded or Compressed to 400 kcmil Solid or Compact. No Grounding or Sealing Kit.
Features
- Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 350 kcmil to 400 kcmil |
| Voltage Rating | 15 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 600 Amps, 15kV Connector |
| Size | 13.31 inches width, 10.88 inch bottom edge to center of bushing |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | All Weather Conditions |
