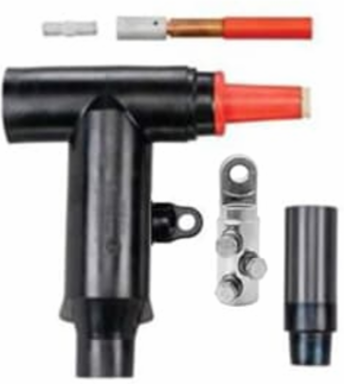

Thomas & Betts 656CETP-MAC03-S 15KV 600A DB TP COMBO-T MAC03-S
- MPN: 656CETP-MAC03-S
- UPC: 075114399654
- PPN: T-B-656CETP-MAC03-S
- UNSPSC: 39121421
CAD
$2274.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV, 600 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 1.370 inch to 1.630 inch. Shear Bolt Lug. Conductor Size Compressed-Stranded-Solid-Compact 500 to 750 kcmil. 200ECS Cold Shrinkable Jacket Seal Included.
Features
- Reducing Tap Plug with Stud, Cable Adapter, and Shear Bolt Lug. Test Point
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Shear Bolt |
| Size | 13.31 inches width, 10.88 inch bottom edge to center of bushing |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes EPDM Rubber |
| Environmental Conditions | All Weather Conditions |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 600 Amps, 15kV Connector |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 500 to 750 kcmil |
| Voltage Rating | 15 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
