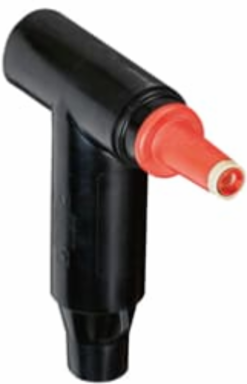

Thomas & Betts 655CETP-N0380-S 600A 15KV COMBO T W/ SEALING KIT
- MPN: 655CETP-N0380-S
- UPC: 075114378833
- PPN: T-B-655CETP-N0380-S
- UNSPSC: 39121421
CAD
$1834.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15kV, Combo T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug, No Test Point, Aluminum, Cable Insulation Diameter 1.515 inch to 1.780 inch. With Shrink-Fit Jacket Seal Kit. Aluminum Compression Lug, 700/750 kcmil Stranded/Compressed or 900 kcmil Solid/Compact.
Features
- Reducing Tap Plug with Stud, Cable Adapter, and Lug
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Size | 13.31 inches width, 10.88 inch bottom edge to center of bushing |
| Material | Housing - PDM Rubber |
| Color | Black |
| Insulation | Yes EPDM Rubber |
| Environmental Conditions | All Weather Conditions |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 600 Amps, 15kV Connector |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 700 to 750 kcmil , 900 kcmil |
| Voltage Rating | 15 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
